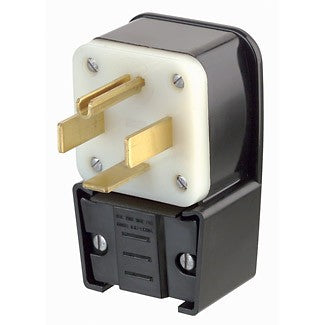

Leviton 9462-P - 60 Amp, 125/250 Volt, NEMA 14-60P, 3P, 4W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black

Name: Leviton 9462-P - 60 Amp, 125/250 Volt, NEMA 14-60P, 3P, 4W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black
Brand: Leviton
SKU: 9462-P
Price: 83.7 USD
Availability: InStock

From $83.70 USD

Size Single Box of 10

Product variants

Up to 45% off

$83.70 USD

$83.70 USD ~~$152.40 USD~~

Shipping calculated at checkout.

9462-P

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

60 Amp, 125/250 Volt, NEMA 14-60P, 3P, 4W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black

Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.

Product Features

AC Horsepower Ratings

At Rated Voltage: 3-1/2 HP

Electrical Specifications

Amperage: 60 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 3
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125/250 VAC
Wire: 4

Environmental Specifications

Operating Temperature: -40°C to 60°C

Material Specifications

Assembly Screws: Steel, Zinc Plated
Blades/Contacts: Solid Brass
Body Material: Super Tough Nylon
Color: Black

Mechanical Specifications

Cord Range: .625 - 1.375

Product ID: Ratings are permanently marked on device
Terminal Accom.: Up to 4 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge: 10-4 AWG

Product Features

Color: Black
Device Type: Power Device
Feature: Angled
NEMA: 14-60P
Warranty: 2-Year Limited

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-6
NOM: 057
UL498: File E13399
Warranty: 2-Year Limited

Downloads

DIMENSIONAL DATA

WIRING DIAGRAM

INSTRUCTION SHEET
