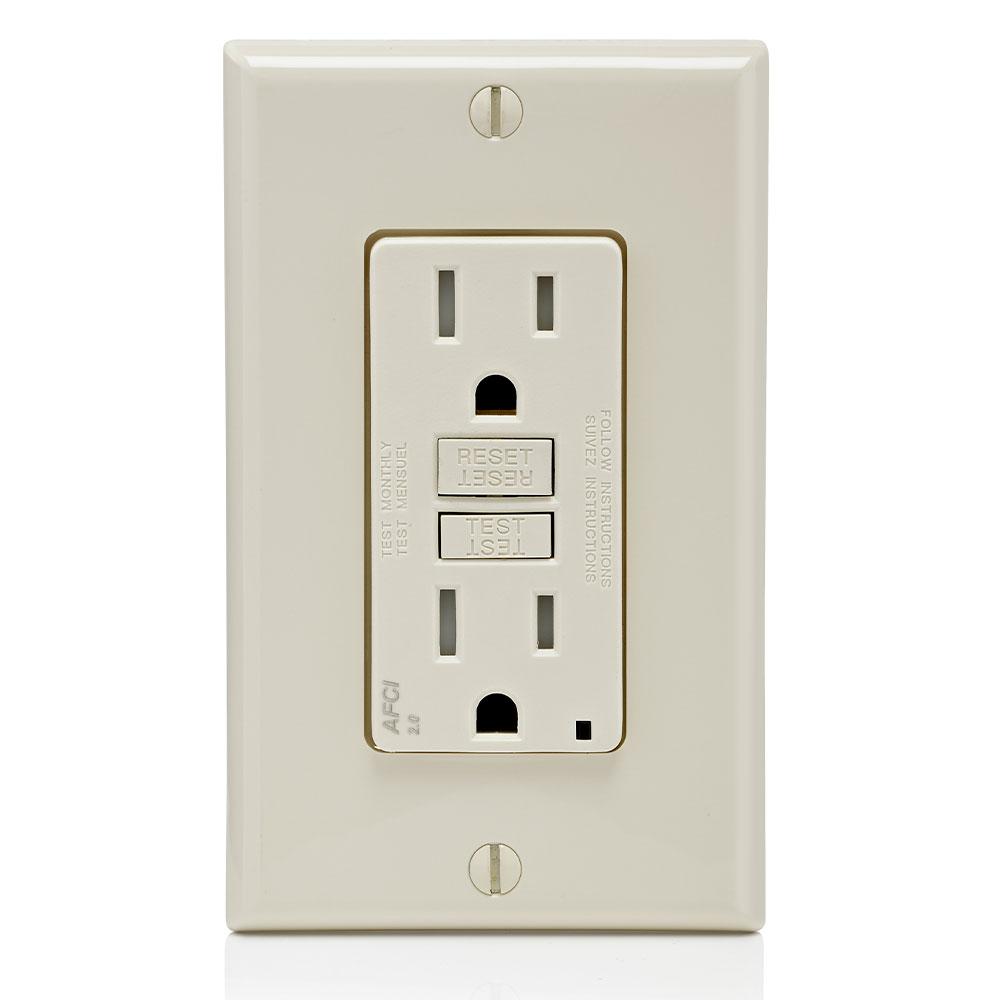

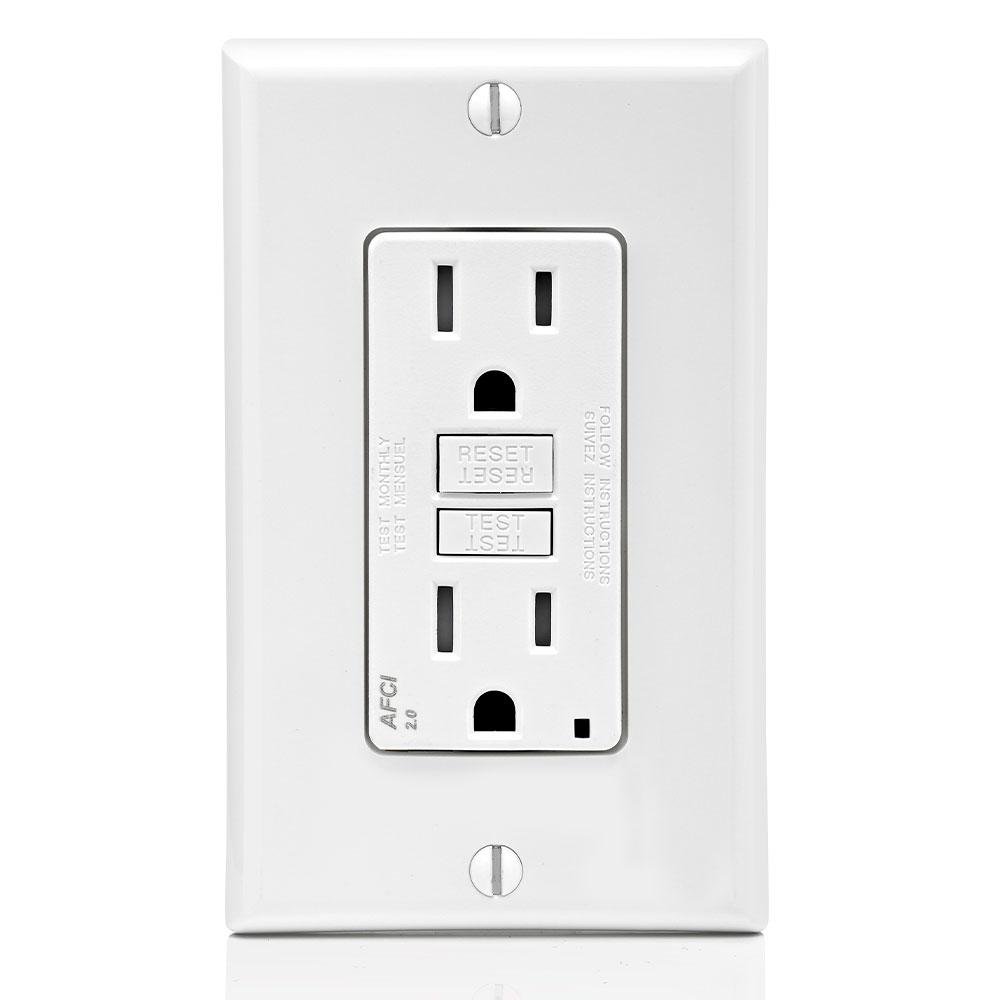

Leviton AFTR1 - 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Leviton Receptacles | Products |SKU: AFTR1-W

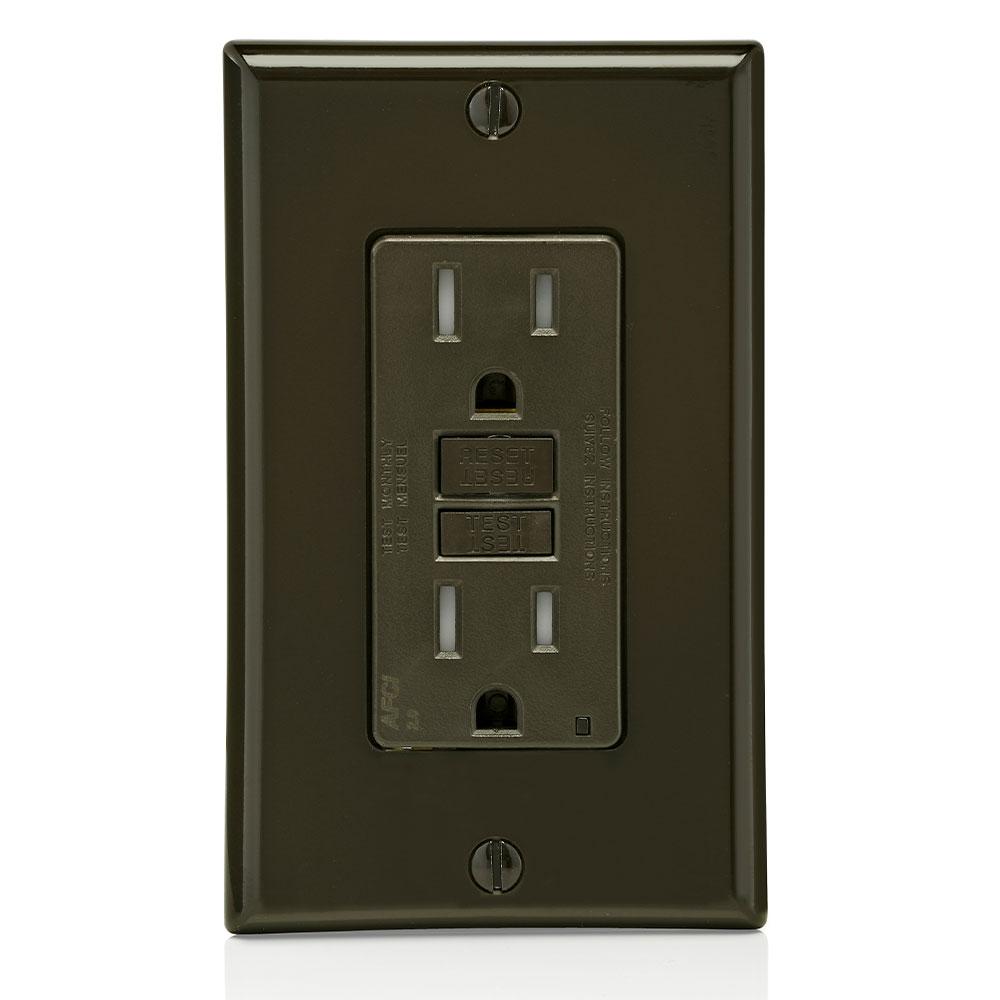

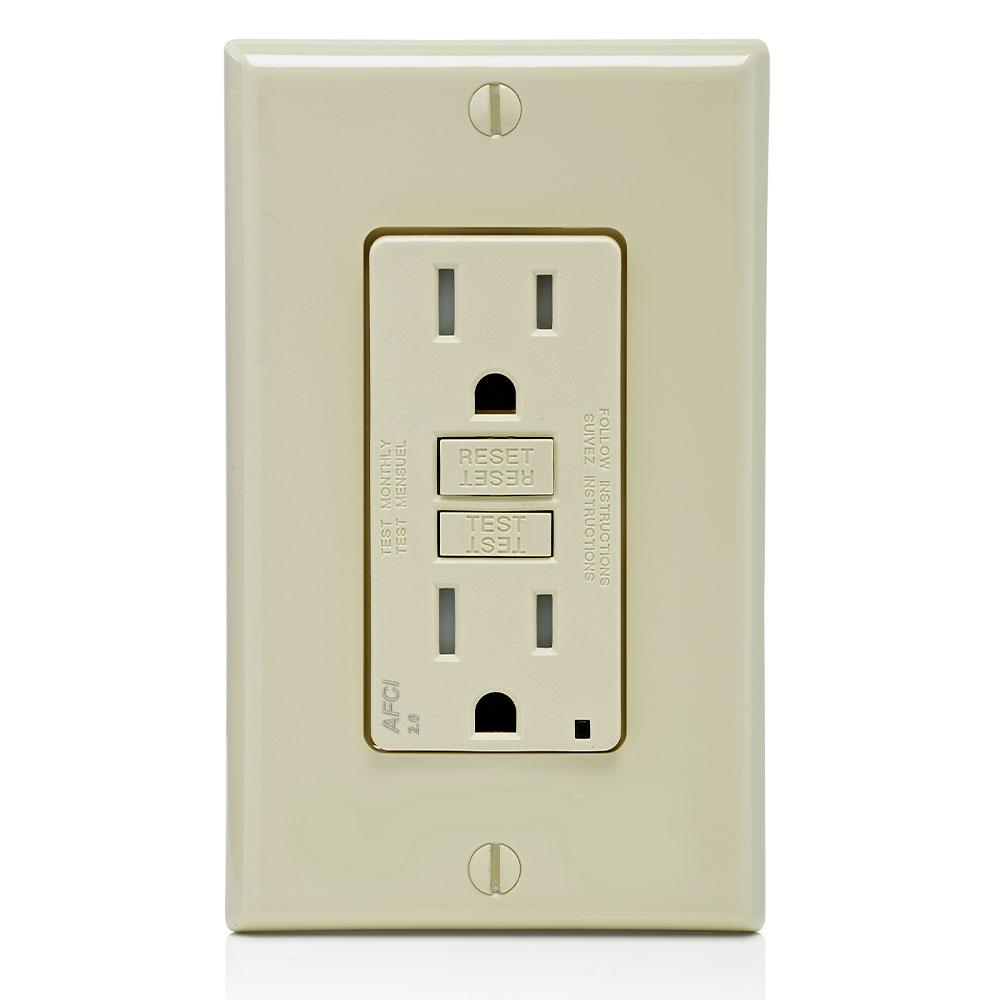

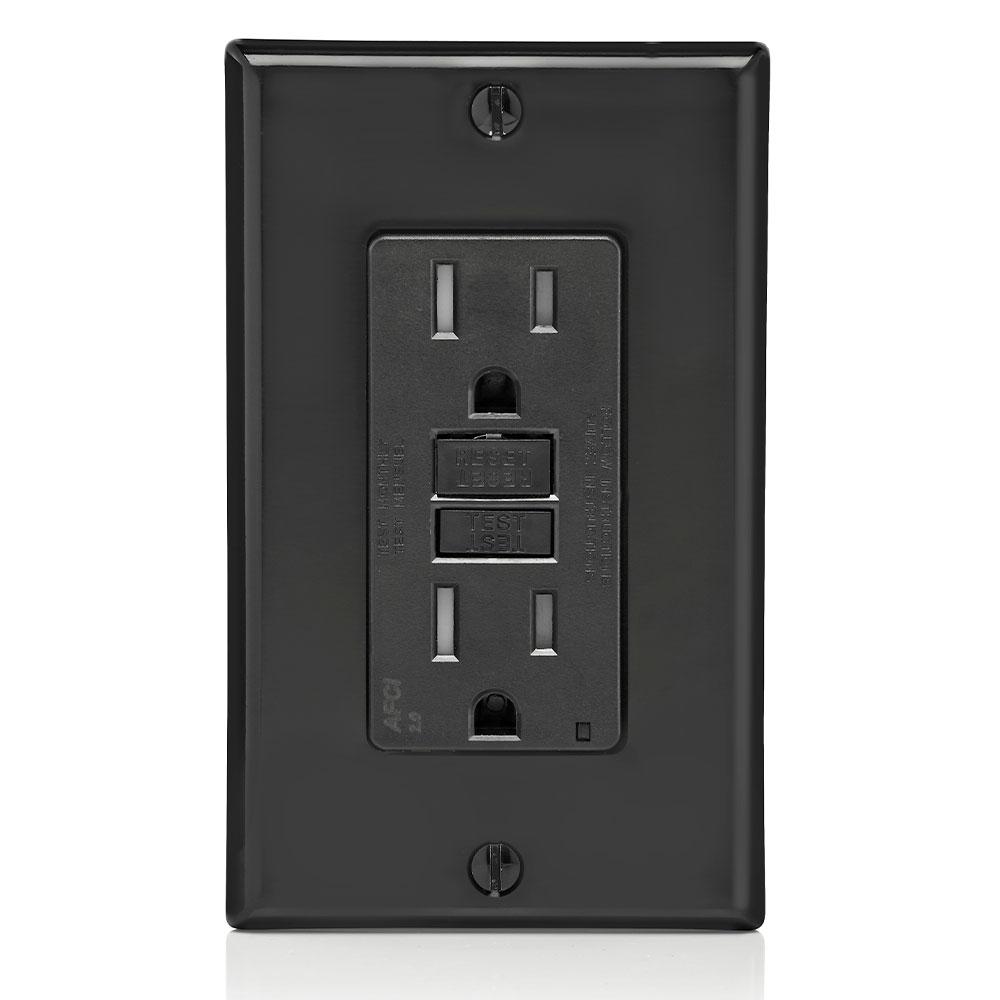

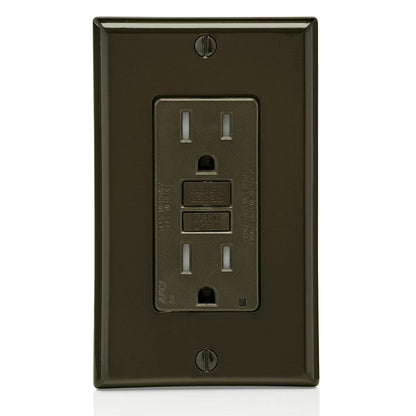

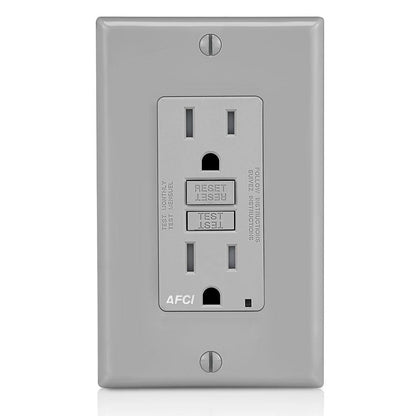

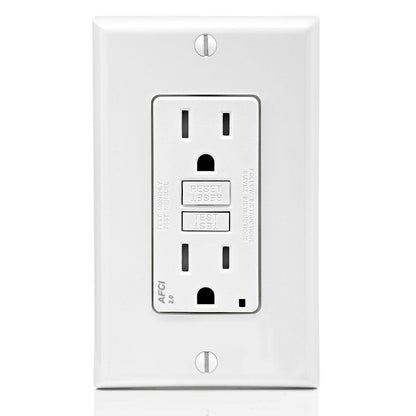

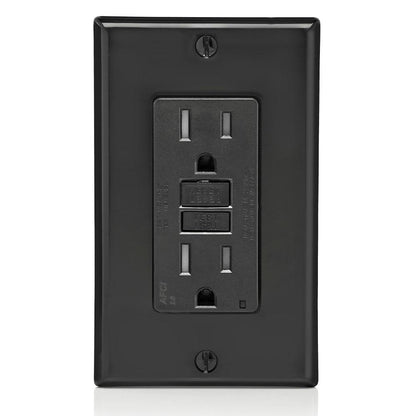

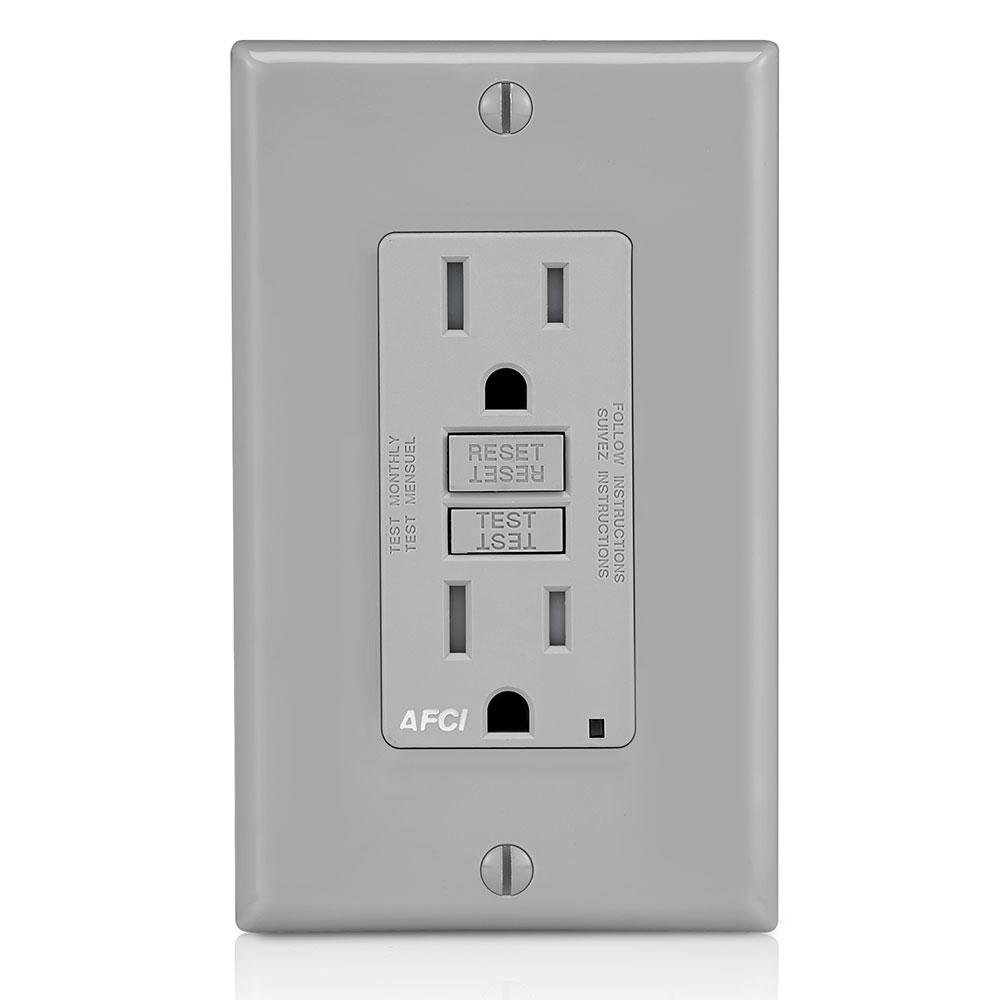

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self grounding clip included
The SmartlockPro® Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home’s electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code® in many areas of the home.
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- TR symbol indicates the device’s compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages
- Terminals allow for easy wiring options – back and side wire capable
- Compatible with all Decora® devices and wallplates; available in select colors
- Meets or exceeds UL requirements for tripping time on both series and parallel arcs
Product Features
At Rated Voltage: 1 HP
Color: White
Feature: Tamper-Resistant
Grounding: Self-Grounding
NEMA: 5-15R
Pole: 2
Series: AFTR1
Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
Strap Material: Galvanized Steel
Termination: Back & Side
Type: Duplex Receptacle
Voltage: 125 VAC
Wallplate: Included
Warranty: 2-Year Limited
Wire: 3
Dielectric Voltage: Withstands 1250VAC per UL 1699A
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Flammability: Rated V-2 per UL 94
Operating Temperature: -35C to +66C
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Clamps: Brass
Face Material: Thermoplastic
Flammability: Rated V-2 per UL 94
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: w/ Wallplate
Operating Temperature: -35C to +66C
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: w/ Wallplate
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Color: White
Feature: Tamper-Resistant
Grounding: Self-Grounding
NEMA: 5-15R
Pole: 2
Product ID: Ratings are permanently marked on device
Series: AFTR1
Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
Strap Material: Galvanized Steel
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range: 14 – 18 in.-lbs
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
CSA C22.2 No. 42: Yes
CSA Technical Information Letter No. M-02A: Yes
NOM: 057
UL Fed Spec WC-596: Yes
UL1699.A: File E342815
UL498: Yes
