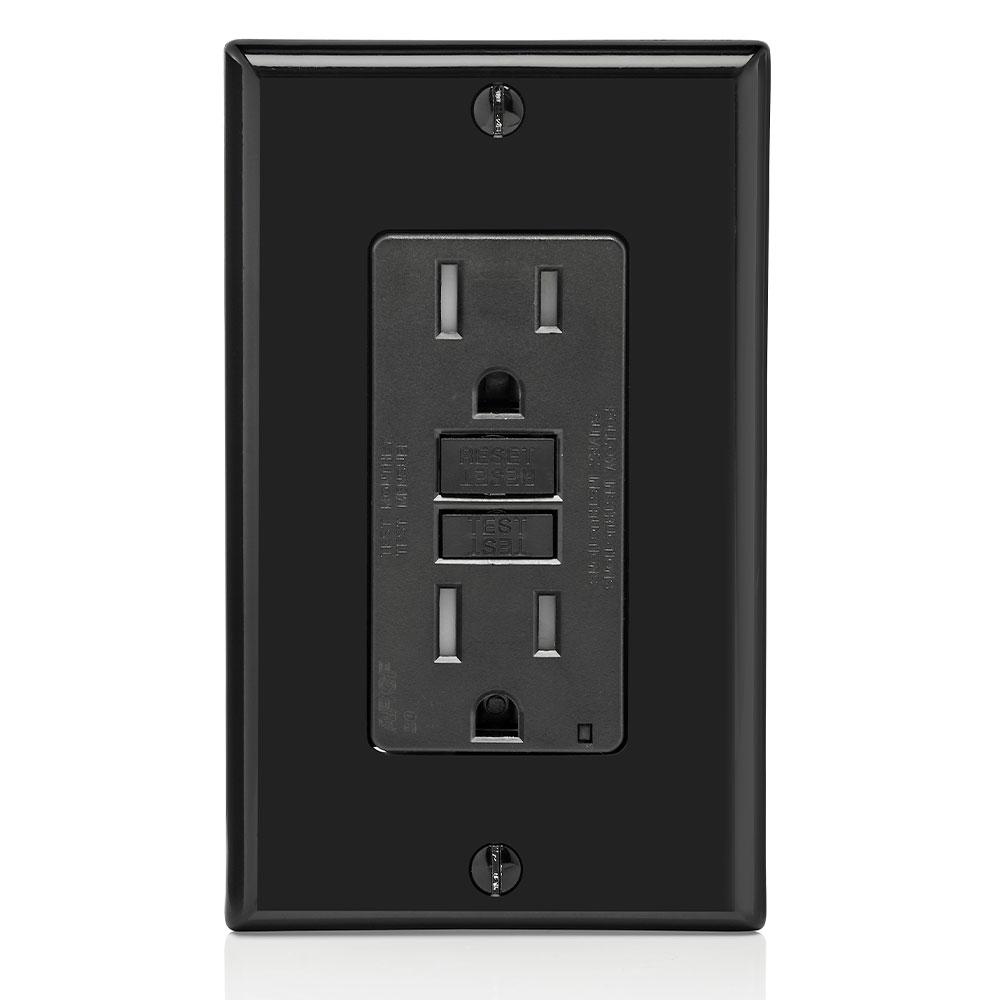

Leviton AGTR1 - 15 Amp, 125 Volt Dual Function AFCI/GFCI Receptacle, 20 Amp Feed-Through, Tamper-Resistant

Leviton AGTR1 - 15 Amp, 125 Volt Dual Function AFCI/GFCI Receptacle, 20 Amp Feed-Through, Tamper-Resistant

$31.20 USD
$31.20 USD $48.75 USD

LEV-AGTR1-W

Size
Color
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Need Help?

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

Leviton AGTR1 is a 15 Amp, 125 Volt Dual Function AFCI/GFCI tamper-resistant receptacle providing combined arc-fault and ground-fault protection in one device. Designed to help prevent electrical fires and shock hazards by quickly cutting power upon detection of arc faults or ground faults. Features include self-test auto-monitoring, lockout protection, status indicator, and enhanced wiring options. Suitable for residential kitchens, laundry, and replacement of ungrounded receptacles per NEC requirements.
Model
AGTR1
Amperage
15 A
Voltage
125 VAC
NEMA
5-15R
Feature
Dual Function AFCI/GFCI, Self-test, Tamper-Resistant
Feed-Through Rating
20 Amp
Wiring
Back and Side Wired
Grounding
Self-Grounding
Pole
2
Horsepower Rating
1 HP at rated voltage
Dielectric Voltage
1250 VAC per UL 1699A
Temperature Rise
Max 30°C after 250 cycles OL at 200% rated current
Operating Temperature
-35°C to +66°C
Body Material
Polycarbonate
Face Material
Thermoplastic
Clamps
Brass
Line Contacts
Brass Double-Wipe, 0.031" Thick
Terminal Screws
Plated Steel
Strap Material
Galvanized Steel
Terminal Accommodation
14-10 AWG
Torque Range
14 – 18 in.-lbs
Wallplate
Included (Nylon)
Standards & Certifications
UL/CSA, NEMA WD6, NEMA WD1, ANSI C-73, NOM
UL File
E480630 (UL1699.A), UL498
  • Provides combined AFCI (Arc Fault) and GFCI (Ground Fault) protection in a single device
  • Meets NEC requirements for kitchens, laundry, new construction, modifications, and replacement receptacles
  • Self-test auto-monitoring with patented lockout prevents resets if device is damaged
  • Status indicator light shows power/protection status and line/load wiring condition
  • Improved noise immunity reduces nuisance tripping
  • Impact-resistant thermoplastic body and cover
  • Compatible with Decora devices and wallplates for multi-gang installations
