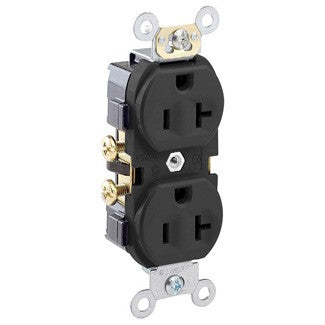

Leviton CR20 - Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding
From $2.95 USD
NaN
/
of
-Infinity
Up to 17% off
Regular price
$2.95 USD
Sale price
$2.95 USD
Regular price
$3.49 USD
Unit price
/
per
Shipping calculated at checkout.
CR20-W
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Payment methods
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding
Product Features
AC Horsepower Ratings
At Rated Voltage: 1 HPElectrical Specifications
Amperage: 20 ACurrent Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental Specifications
Operating Temperature: -40°C to 60°CMaterial Specifications
Body Material: ThermoplasticFace Material: Thermoplastic
Ground Clips: Brass
Grounding Screw: Steel 8-32
Line Contacts: Brass .031 Thick
Strap Material: Zinc-Plated Steel
Terminal Screws: Steel 8-32
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side Wire
Device Type: Duplex Receptacle Outlet
Feature: Indented Face
Grade: Commercial Specification Grade
NEMA: 5-20R
CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
UL498: File E13399
Warranty: 10-Year Limited
Mechanical Specifications
Product ID: Ratings are permanently marked on deviceTerminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side Wire
Product Features
Color: WhiteDevice Type: Duplex Receptacle Outlet
Feature: Indented Face
Grade: Commercial Specification Grade
NEMA: 5-20R
Standards and Certifications
ANSI: C-73CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
UL498: File E13399
Warranty: 10-Year Limited
