Product Information

Overview

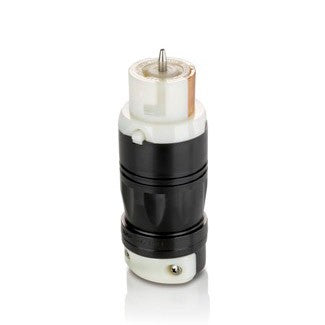

The Leviton CS6364C is a 50 Amp, 125/250 Volt, non-NEMA industrial grade locking connector in a distinctive black and white California-style design. It features rugged construction that resists impact, sunlight, and chemicals, with solid one-piece brass contacts and blades for superior conductivity. The ergonomic fluted body and radial gripping edge provide easy handling. The unique cord clamp accommodates a wide range of cord sizes while securing the cord without damage. Backed by a limited lifetime warranty.

Technical Specification

Model
CS6364C
Amperage
50 A
Voltage
125/250 VAC
Pole
3
Wires
4
NEMA Configuration
Non-NEMA
Device Type
Locking Connector, Industrial Grade, Grounding
Color
Black-White
Cord Range
0.680 - 1.125 inches
Terminal Accommodations
#10 min to #4 max AWG solid or stranded wire
Temperature Rise
Max 30°C rise at full rated current after 150 cycles OL at 150% rated DC current

Additional Information

  • Certified for current interrupting at full rated current
  • Dielectric voltage withstand: 2000V minimum per UL 498
  • Environment: Dry
  • Flammability rating: UL 94 HB or better
  • Operating temperature: -40°C to 75°C
  • Assembly screws: Brass
  • Cable clamp screw: Stainless steel (SS 304), Philips head
  • Center pin: Stainless steel (SS 302/304)
  • Contact binding plate thickness: 0.100 inch brass
  • Contact spring value thickness: 0.041 inch brass
  • Contact rivet: Brass
