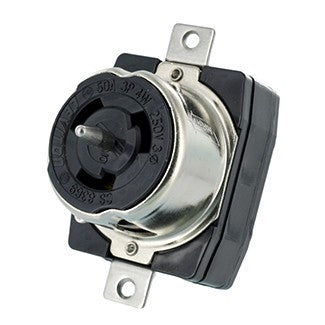

Leviton CS8369 - 50 Amp, 3-Phase 250V AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK

Name: Leviton CS8369 - 50 Amp, 3-Phase 250V AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK
Brand: Leviton
SKU: CS8369
Price: 94.15 USD
Availability: InStock

From $94.15 USD

Size Single Box of 10

Product variants

Up to 36% off

$94.15 USD

$94.15 USD ~~$147.11 USD~~

Shipping calculated at checkout.

CS8369

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

50 Amp, 3-Phase 250V AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) – BLACK

Leviton Black & White 50Amp Non-NEMA Locking devices are designed for faster wiring and longer life. Made from tough, impact-resistant nylon housings and metal shrouds, these plugs, connectors, receptacles and flanged inlets are designed for rugged environments like construction sites, commercial shipyards and convention centers.

Product Features

Electrical Specifications

Amperage: 50 A
Current Interrupting: Certified for current interrupting at full rated current
Dielectric Voltage Withstand: 2000V minimum per UL 498
Grounding: Grounding
Maximum Working Voltage: 3-Phase 250V as rated
Phase: 3-Phase
Pole: 3
Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
Voltage: 250 VAC
Wire: 4

Environmental Specifications

Environment: Dry
Flammability: UL94 V-0
Operating Temperature: -40°C to 75°C

Material Specifications

Assembly Rivets: SS 302/304
Back Cover: Flame-retardant Nylon
Body & Contract Carrier: Flame-retardant Nylon
Box Terminal: 0.062inch thick Copper
Center Pin: SS 302/304
Color: Black
Compression Nut, Strain Relief: 0.100-inch thick Brass
Connector Contact - Binding Plate: 0.100-inch thick Brass

Connector Contact - Spring: 0.041-inch thick Brass
Contact Rivet: Brass
Face Module: Flame-retardant Nylon
Mounting Screws: SS 302/304
Mounting Strap: Single piece SS 302/304
Shroud: .062-inch thick Nickel Plated Steel
Terminal Block: 0.062-inch thick Copper
Terminal Set Screw: SS 302/304

Mechanical Specifications

Product ID: Ratings and Catalogue No. molded into face
Terminal Accom.: AWG #10 to #6 for Ground (stranded only), and AWG #10 to #4 for line terminals
Terminal ID: X, W, Y, and Green for ground

Product Features

Brand: Black and White
Color: Black
Device Type: Locking Receptacle
NEMA: Non-NEMA

Standards and Certifications

CSA C22.2 No. 42: File 152105
NOM: 057
RoHS: Compliant
UL 498: File E13399
Warranty: Limited Lifetime
