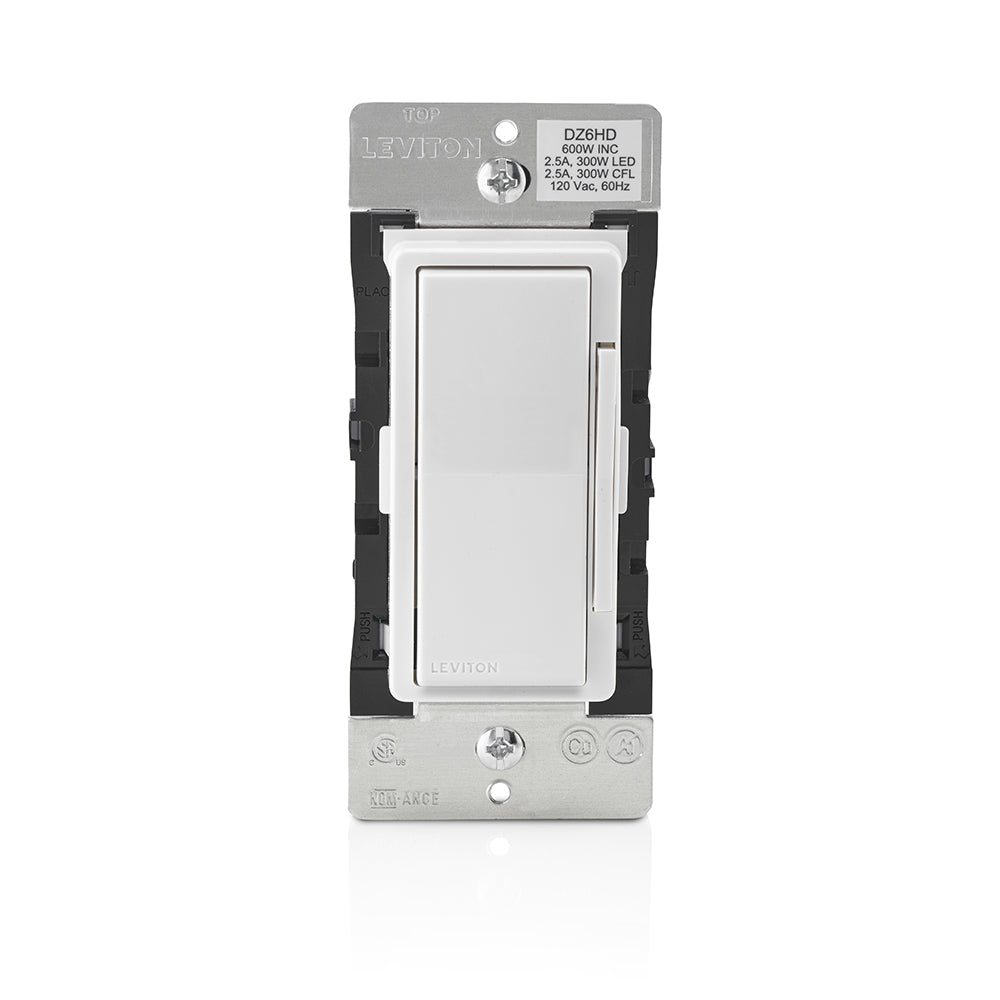

The Leviton DZ6HD dimmer is Z-Wave Plus-enabled and designed for residential lighting. It supports dimming of extremely low-wattage light sources, such as LEDs, and is compatible with Wink, SmartThings, Amazon Echo, and other certified Z-Wave controllers. The device offers two-way feedback, scene control, and Z-Wave Plus certification for increased range and over-the-air updates. Other features include 49 fade rates, pre-sets for powering on and minimum brightness, transient surge suppression, and an UL-required air gap switch. The switch disconnects power from the load and is hidden from view during operation. The DZ6HD supports 3-way and multi-way circuits when paired with the matching DD00R-DL remote dimmer.
Z-WAVE PLUS CERTIFICATION
• Increased communication range
• Network Wide Inclusion
• Support for beaming and secure commands
• Over The Air (OTA) updates
FEATURES AND BENEFITS
• Rated for dimmable CFL and LED loads up to 300W
• Rated for incandescent loads up to 600W
• Compatible with Leviton vizia rf + systems
• Soft fade on/o
• On/o LED (bottom) and Brightness Level LED (left side)
• Multi-location (3-way) dimming is achieved using up to 4 remote units, DD00R-DL
• Frequency: 908.42 MHz.
RATINGS
• Incandescent - 600W - 120VAC, 60Hz
• LED/CFL - 300W - 120VAC, 60Hz
Product Spec Sheet
