Leviton E5325-W 15 Amp, 125 Volt, NEMA: 5-15R, 2 Pole, 3-Wire, Straight Blade, Decora Duplex Tamper-Resistant Outlet, Self-grounding, UL/CSA, NEC compliant

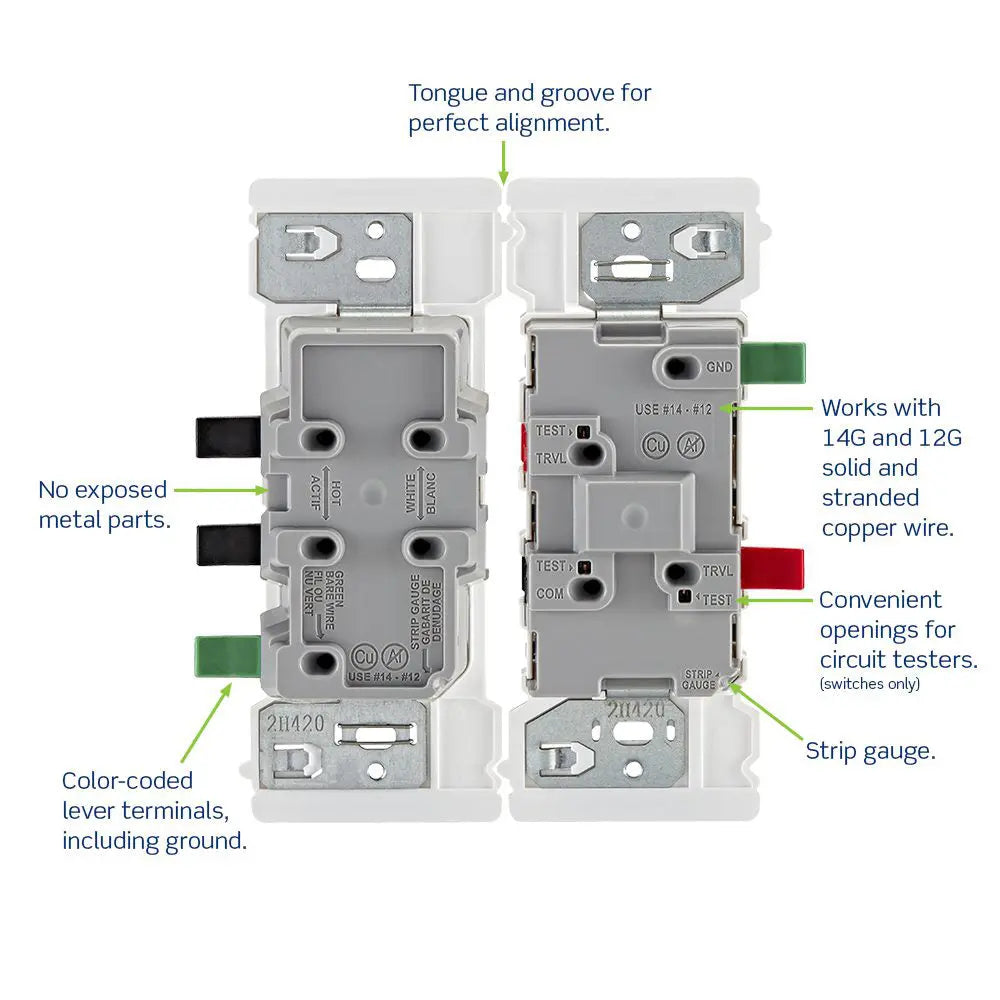

Leviton’s Decora Edge wiring devices provide the classic appearance and superior performance of Decora devices in a new, easier-to-install, safer design. The line consists of Single Pole and 3-Way Switches and a Tamper-Resistant 15-amp Duplex Receptacle. Innovative installation features such as color-coded lever terminals (including the ground terminal) for faster, efficient wiring, a larger strap with a unique tongue and groove alignment feature for quicker trim out on multi-gang installations, and no exposed metal parts for safety, make Decora Edge ideal for new home construction and MDU projects as well as retrofit applications.

Installers using Decora Edge will experience an installation process as unique as it is practical. The color-coded levers provide the foundation
for quick installation by helping to rapidly identify the correct terminal
for wiring, including a first of it’s kind lever terminal for the ground wire. The lever termination feature assures a positive connection has been made. This patent pending design also has a snap feature with an audible “click” so installers can be confident with every termination.

• INNOVATIVE – Patent pending color-coded lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE.
• EASIER: Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
• SAFER: No exposed metal parts for enhanced safety
• COMPATIBLE: Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate

Product Specification
E5325, 15 Amp Duplex Receptacle
Amperage: 15 A
Body Material: Thermoplastic
Blade Type: Straight Blade
Feature: Tamper-Resistant
Self-Grounding: Yes
NEMA: 5-15R
Strap Material: Plastic and Steel
Termination: Side lever
Type: Duplex Receptacle
Voltage: 125 VAC
Standards & Certifications:
CSA C22.2 No. 42: File 152105; Class 6233-01
NOM: NOM Certified
UL 498: File E13399
Warranty: 2-Year Limited
