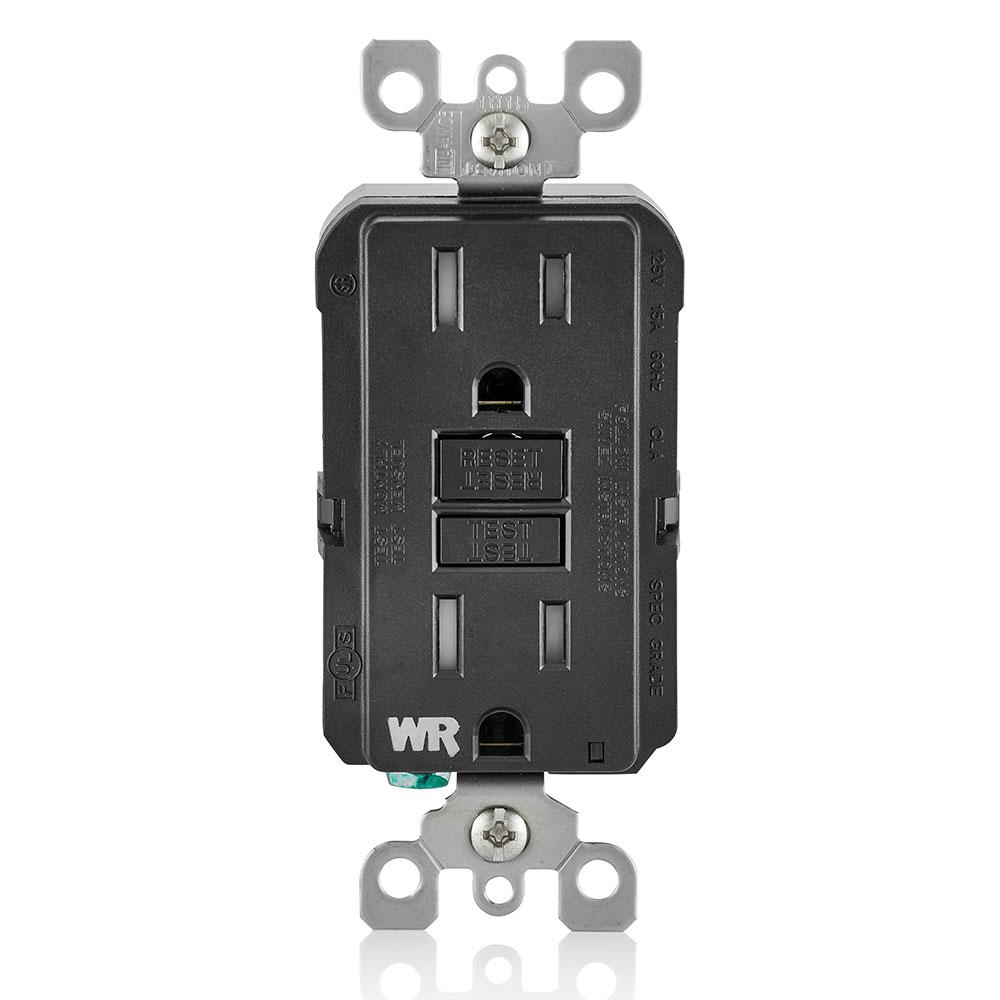

Leviton GFWT1 - 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather & Tamper-Resistant GFCI

Leviton GFWT1 - 15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather & Tamper-Resistant GFCI

$25.50 USD
$25.50 USD $39.84 USD

LEV-GFWT1-W

Size
Color
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Will Call / Pick up

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

Overview

The Leviton GFWT1 is a 15 Amp, 125 Volt SmartlockPro GFCI receptacle with 20 Amp feed-through capability. Designed for both indoor and outdoor use, it features weather and tamper-resistant protection, self-test technology, and a patented reset lockout mechanism. Ideal for residential and commercial applications, this GFCI ensures maximum safety with continuous ground fault protection and superior surge immunity.

Technical Specification

Model
GFWT1
Amperage
15 A (Receptacle), 20 A Feed-Through
Voltage
125 VAC
Trip Level
Class A, 5mA ±1mA
Wiring Type
Back & Side Wire, 14–10 AWG
Tamper Resistant
Yes
Weather Resistant
Yes
Grounding
Green Ground Screw
NEMA Configuration
5-15R
Color
White
Wallplate
Not Included
Face Material
Polypropylene
Body Material
Polycarbonate
Yoke / Strap
Stainless Steel
Operating Temperature
-35°C to +66°C
Short Circuit Rating
10 kA
Horsepower Rating
1 HP at 125 VAC
Certifications
UL 943, UL 498, CSA C22.2 No. 42 & 144.1-06, Fed Spec WC-596, MIL-SPEC A-A-55459-SB, NOM, ANSI C-73

Additional Information

  • Self-Test GFCI: Automatically tests internal components to ensure functionality.
  • Reset Lockout: Prevents reset if unit is not operating correctly.
  • Slim Design: Simplifies installation in shallow wall boxes.
  • Status Indicator: LED provides at-a-glance status of protection and wiring.
  • Weather & Tamper-Resistant: Ideal for outdoor or child-safe applications.
  • Back and Side Wired: Flexible and secure wiring options.
  • High Surge Immunity: Withstands electrical over-voltages.
  • Rugged Build: Cold impact-resistant face, stainless steel strap and screws.
