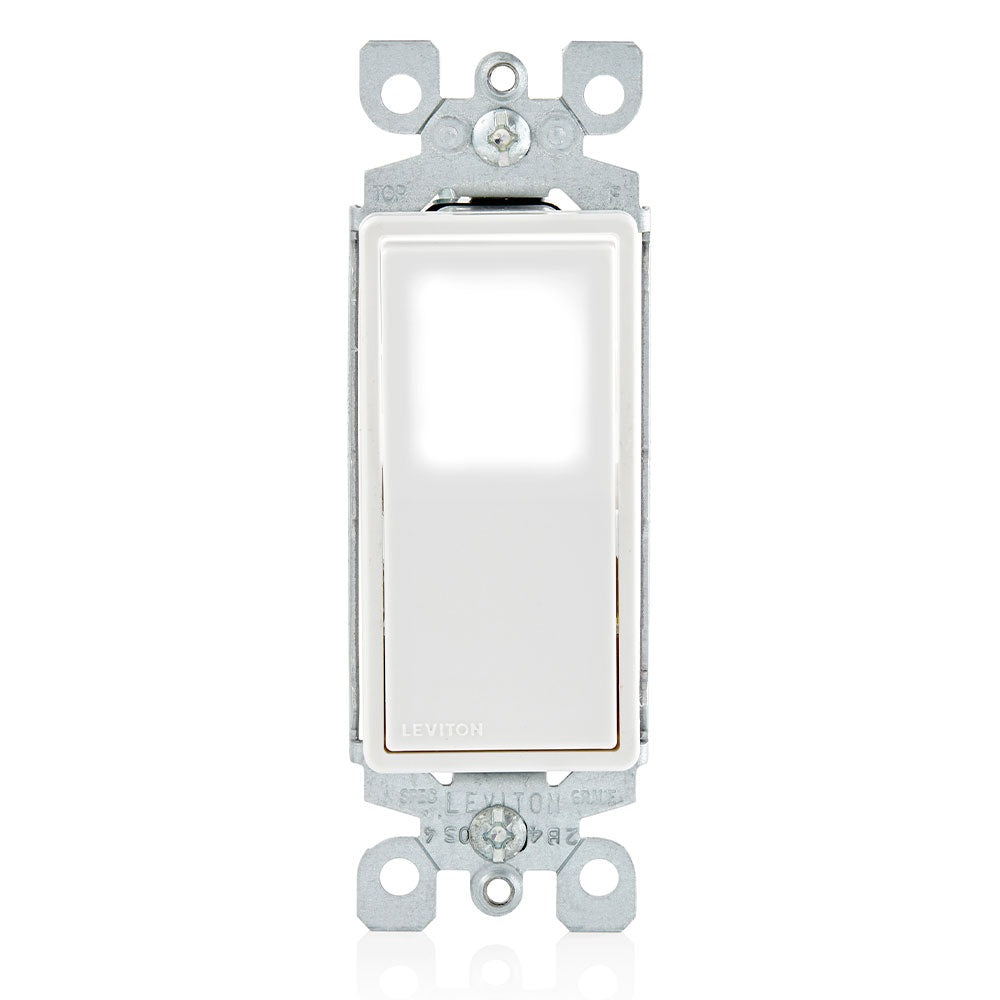

15 Amp, 120/277 Volt, Decora LED Illuminated Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding - White
- PERFORMANCE – Designed to work with LED, CFL and incandescent loads, no neutral required
- SAFE – Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- MODERN – White LED light inside the switch provides a refreshed and modern appearance
- CONVENIENT – Replaces any standard single-pole switch; controls light(s) from one location
Product Features
Amperage: 15 A
Color: White
Device Type: Rocker Switch
Feature: Illuminated
Grade: Residential
Grounding: Grounding
HP Rating: 1/2HP-120V 2HP-240V-277V
Illumination Color: White
LED Color Temperature: 6000K
Max. Amperage: 12 Amp
Pole: 1
Voltage: 120/277 VAC
Material Specifications
Actuator Material: Thermoplastic
Body Material: Thermoplastic
Strap Material: Steel
Mechanical Specifications
Terminal Accom.: Back & Side Wire #14-#12 AWG; Quickwire #14 AWG Solid copper wire only
Termination: Side Wire, Back Wire, Quickwire Push-In
Torque Range: 14 – 18 in.-lbs
Type: LED Illuminated Switch
Standards and Certifications
NOM: NOM
UL Standard: cULus
Warranty: 2-Year Limited
Product Specifications
Instruction Guide
