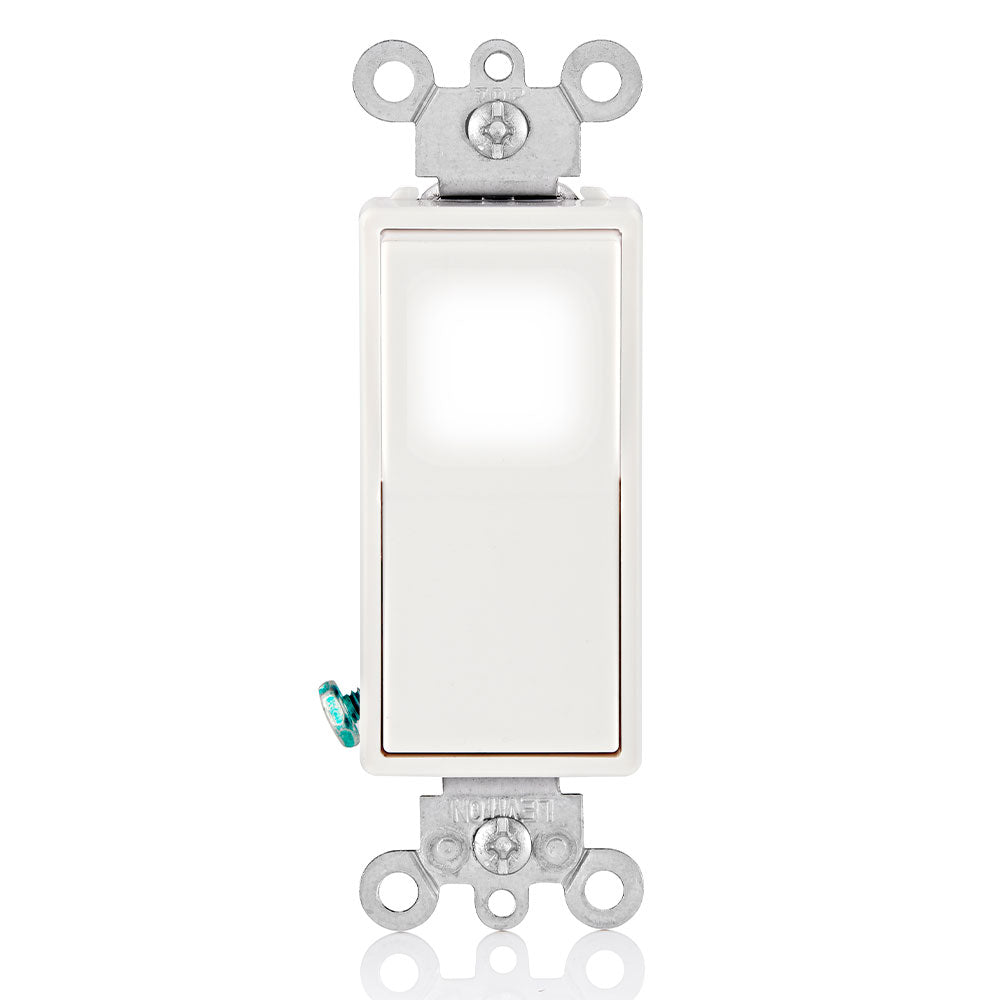

Leviton L5614-2W Decora LED Illuminated Rocker 4-Way Switch
Leviton - Switches, Dimmers, Outlets & Lighting Controls | Products |SKU: Leviton-L5614-2W
15 Amp, 120/277 Volt, Decora LED Illuminated Rocker 4-Way AC Quiet Switch, Residential Grade, Grounding - White
- PERFORMANCE - Designed to work with LED, CFL and incandescent loads, no neutral required
- SAFE - Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- MODERN - White LED light inside the switch provides a refreshed and modern appearance
- CONVENIENT - Replaces any standard 4-Way switch; controls light(s) from multiple locations
Product Features
Amperage: 15 AColor: White
Device Type: Rocker Switch
Feature: Illuminated
Grade: Residential
Grounding: Grounding
HP Rating: 1/2HP-120V 2HP-240V-277V
Illumination Color: White
LED Color Temperature: 6000K
Max. Amperage: 12 Amp
Pole: 4
Voltage: 120/277 VAC
Material Specifications
Actuator Material: Thermoplastic
Body Material: Thermoplastic
Strap Material: Steel
Termination: Side Wire & Back Wire
Torque Range: 14 – 18 in.-lbs
Type: LED Illuminated Switch
UL Standard: cULus
Strap Material: Steel
Mechanical Specifications
Terminal Accom.: Side Wire #14-#12 AWGTermination: Side Wire & Back Wire
Torque Range: 14 – 18 in.-lbs
Type: LED Illuminated Switch
Standards and Certifications
NOM: NOMUL Standard: cULus
Warranty
Warranty: 2-Year LimitedIf you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
