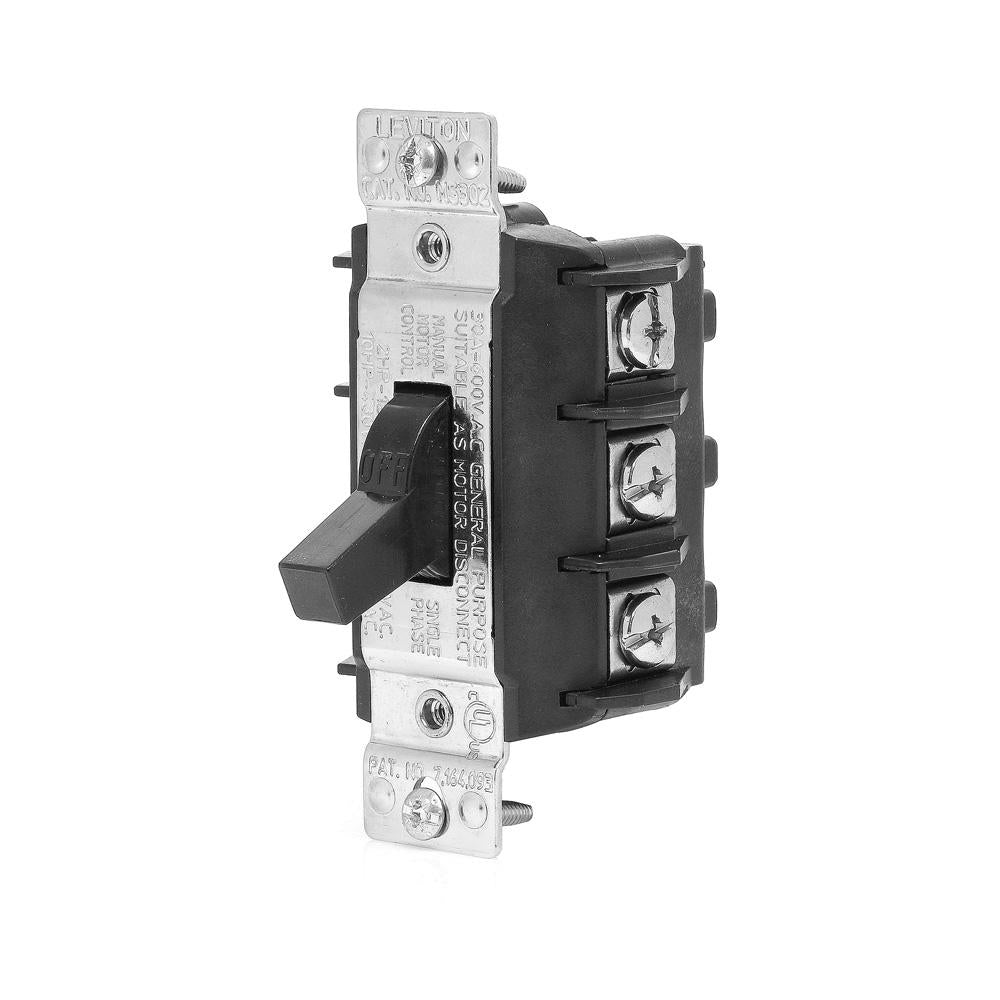

Leviton MS303-DS - 30 Amp, 600 Volt, Three-Pole, Three Phase AC Manual Motor Controller, Suitable as Motor Disconnect, Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring - Black
From $63.66 USD
Up to 36% off
Regular price
$63.66 USD
Sale price
$63.66 USD
Regular price
$99.47 USD
Unit price
/
per
Shipping calculated at checkout.
MS303-DS
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Payment methods
30 Amp, 600 Volt, Three-Pole, Three Phase AC Manual Motor Controller, Suitable as Motor Disconnect, Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring - Black
Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Product Features
Electrical Specifications
Amperage: 30 ADielectric Voltage: Withstands 2200V for 1 min.
Endurance: 6,000 cycles inductive motor type load
Grounding: Non-Grounding
Pole: 3
Temperature Rise: 50ºC Max at full rated current
Voltage: 600 VAC
Environmental Specifications
Flammability: Rated V-0 per UL 94Operating Temperature: -40°C to 60°C
Material Specifications
Base Material: Thermoplastic PolyesterColor: Black
Contacts: Silver-Cadmium .031 Thick
Face Material: Thermoplastic Polyester
Strap Material: Nickel Plated Brass
Terminal Screws: Nickel-Plated Brass 10-32
Toggle: Thermoplastic Polyester
Yoke: Nickel-Plated Brass
Terminal Accom.: #10-#8 AWG
Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
Termination: Back & Side
Torque Range: 25 inch pounds maximum
Device Type: Toggle Switch
NEMA: WD-1 & WD-6
NOM: NOM-ANCE
UL 60947-4-1: supersedes UL 508
Warranty: 10-Year Limited
cUL per CSA C22.2 No. 111: File #E63969
Mechanical Specifications
Product ID: Ratings are permenantly marked on deviceTerminal Accom.: #10-#8 AWG
Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
Termination: Back & Side
Torque Range: 25 inch pounds maximum
Product Features
Color: BlackDevice Type: Toggle Switch
Standards and Certifications
ANSI: C-73NEMA: WD-1 & WD-6
NOM: NOM-ANCE
UL 60947-4-1: supersedes UL 508
Warranty: 10-Year Limited
cUL per CSA C22.2 No. 111: File #E63969
