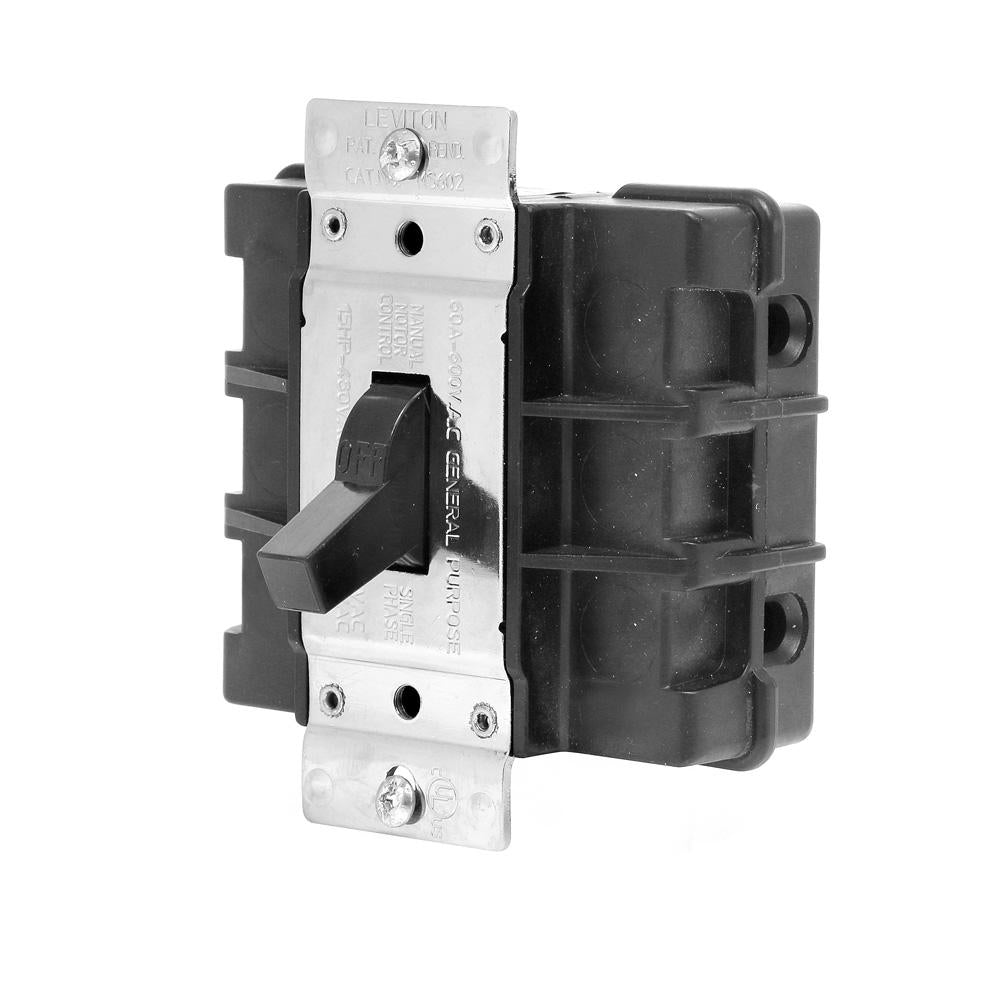

Leviton MS602-BW - 60 Amp, 600 Volt, Single Phase, Toggle Double-Pole AC Manual Motor Controller, Industrial Grade, Non-Grounding, Back Wired, - Black

Leviton MS602-BW - 60 Amp, 600 Volt, Single Phase, Toggle Double-Pole AC Manual Motor Controller, Industrial Grade, Non-Grounding, Back Wired, - Black

$86.88 USD
$86.88 USD $158.19 USD

LEV-MS602-BW

Size
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Secure your shopping experience with various safe and trusted payment methods.

Need Help?

Have a question about this product, or need assistance with your order? Our team is here to provide quick, friendly support whenever you need it.

Contact Us

Product Information

60 Amp, 600 Volt, Single Phase, Toggle Double-Pole AC Manual Motor Controller, Industrial Grade, Non-Grounding, Back Wired, - Black

Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.



Product Features

AC Horsepower Ratings
HP Rating: 10HP-240V 15HP-480V 20HP-600V

Electrical Specifications
Amperage: 60 A
Dielectric Voltage: Withstands 2200V for 1 min.
Endurance: 6,000 cycles inductive motor type load
Grounding: Non-Grounding
Pole: 2
Temperature Rise: 50ºC Max at full rated current
Voltage: 600 VAC

Environmental Specifications
Flammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 60°C

Material Specifications
Base Material: Thermoplastic Polyester
Color: Black
Contacts: .046" Thick Silver-Cadmium Oxide
Face Material: Thermoplastic Polyester
Strap Material: Nickel-Plated Brass
Terminal Screws: Zinc-Plated Steel, Triple Combination
Toggle: Thermoplastic Polyester
Yoke: Nickel-Plated Brass
Mechanical Specifications
Product ID: Ratings are permenantly marked on device
Terminal Accom.: 10-4 AWG
Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
Termination: Back
Torque Range: 25 inch pounds maximum

Product Features
Actuator Material: Valox
Body Material: Rynite
Color: Black
Device Type: Toggle Switch
Standards and Certifications: UL/CSA
Strap Material: Nickel-Plated Brass
Warranty: 10-Year Limited

Standards and Certifications
ANSI: C-73
NEMA: WD-1 & WD-6
NOM: NOM-ANCE
UL 60947-4-1: supersedes UL 508
Warranty: 10-Year Limited
cUL per CSA C22.2 No. 111: File #E63969
