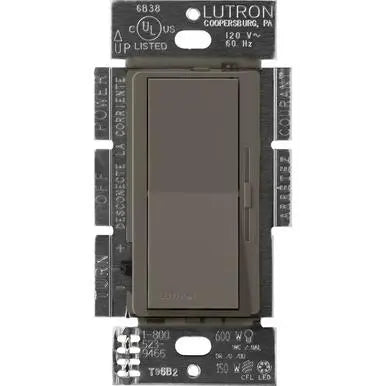

Lutron DVSCRP-253P Diva (satin) Reverse Phase (Electronic Low Voltage), Single Pole/3-way Dimmer

Diva (satin) reverse phase (electronic low voltage), single pole/3-way dimmer. Max ratings are 250W LED/CFL or 500W incandescent/halogen or 500W electronic low voltage w/ halogen.

Documentation

Diva Reverse-Phase (Electronic Low-Voltage) Dimmer Dimmer for ELV, LED, CFL, Halogen, and Incandescent dimmable bulbs.

Features

• On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.

• Built-in soft-glow locator light behind paddle switch.

• UL® Listed to control:

— Dimmable LED with integrated driver

— Dimmable compact fluorescent (CFL) with integrated ballast

— Incandescent/Halogen

— Electronic Low-Voltage (ELV) transformers with halogen or LED (see Lutron App Note #559)

• Reverse-phase type control. Neutral wire connection is required in the wallbox.

• 100% factory tested. Application Requirements • For the best performance, use a bulb that is on the Lutron LED Report Card Tool at www.lutron.com/ledtool For questions call 1.877.DIM.LED8.

• When dimming LEDs or CFLs , only bulbs marked or rated as DIMMABLE WITH REVERSE-PHASE OR UNIVERSAL DIMMERS may be used.

• Not compatible with magnetic low-voltage (MLV) transformers or magnetic LED transformers /drivers

• Dimmer is not compatible with bulbs rated only for forward-phase type dimmers.
