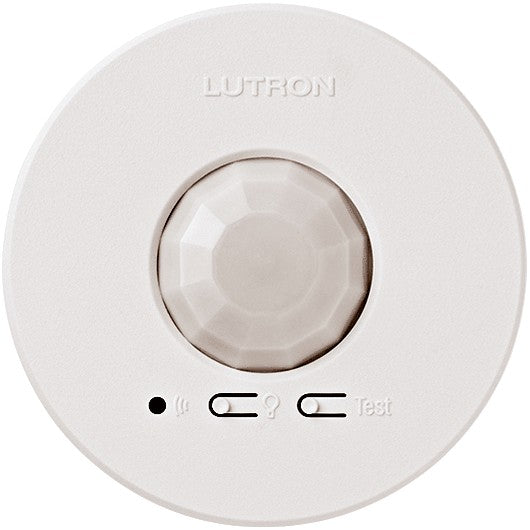

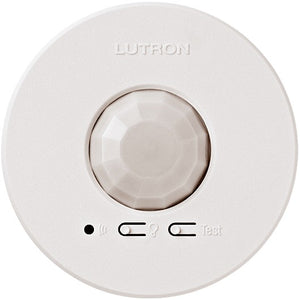

Radio Powr Savr battery-powered wireless, passive infrared, ceiling-mount, vacancy sensor. 360° field of view, 400 sq. ft range at 9 ft ceiling height.
Lutron Radio Powr Savr occupancy / vacancy sensors are wireless, battery-powered, passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming and switching devices. These sensors detect the heat (IR radiation of 9.5 μm) from people moving within an area to determine when the
space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically. They combine both convenience and exceptional energy savings potential along with ease of installation.
Documentation
• Vacancy Only
• Available for Channel Code 2 Only
Features
• Wireless occupancy sensor has 3 settings available: Auto-On/Auto-Off, Auto-On Low-Light/Auto-Off, and Manual-On/Auto-Off
• Auto-On Low-Light feature will turn lights on automatically only if there is less than approximately 10 Lux (1 fc) of ambient light
• Vacancy-only model available to meet California (U.S.A.) Title 24 requirements
• Uses Clear Connect technology
• Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
• 360˚ coverage ranges from 324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), depending on mounting height
• Simple and intuitive adjustments available for Timeout, Auto-On, and Activity settings
• Supports advanced occupancy features, such as dependent occupancy groups and customizable occupied/unoccupied presets in some systems
• Multiple sensors can be added for extended coverage. Refer to product specification submittal of receiving device to determine system limits
• Lens illuminates during test mode to verify ideal locations
• Multiple ceiling-mount methods available for different ceiling materials
• Front accessible test buttons make programming easy
• 10-year battery life design
• RoHS compliant
