Lutron LRF2-VWLB-P Radio Power Saver Wireless Wall-Mounted Vacancy Sensor

Lutron LRF2-VWLB-P Radio Power Saver Wireless Wall-Mounted Vacancy Sensor

LUT-LRF2-VWLB-P

Check more colors

This product may have been updated and we're here to help.

If you were looking for this item, there may be updated or alternative versions available. Our team is happy to provide guidance, suggest compatible options, or answer any questions you have. We're just a call away.

Contact Us

These items don’t display pricing because they require a custom quote.

Product Information

Overview

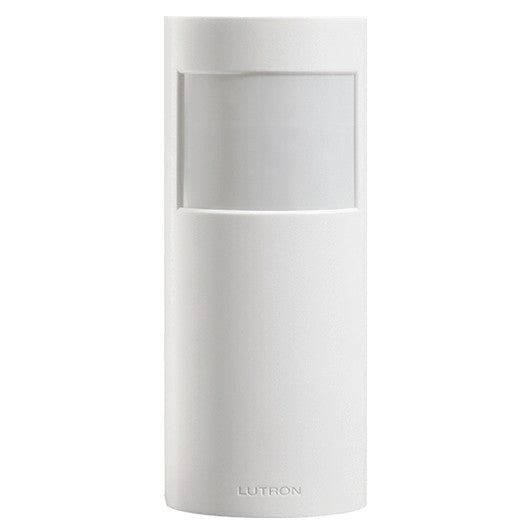

The Lutron LRF2-VWLB-P-WH is a wireless, battery-powered wall-mounted vacancy sensor designed to enhance energy efficiency by automatically turning off lights in unoccupied spaces. Utilizing passive infrared (PIR) technology with Lutron's proprietary XCT™ sensing, it detects fine motion to ensure lights remain on only when needed. This sensor is ideal for areas where manual-on/auto-off functionality is preferred, such as offices, restrooms, and bedrooms.

Technical Specification

Model
LRF2-VWLB-P-WH
Sensor Type
Passive Infrared (PIR) with XCT™ Technology
Mounting
Wall-mounted (surface)
Field of View
180°
Coverage Area
Up to 3,000 ft² (278.7 m²) for major motion; 1,500 ft² (139.4 m²) for minor motion
Time Delay Options
1, 5, 15, or 30 minutes
Power Supply
3 VDC (1 × CR123 lithium battery)
Battery Life
Up to 10 years
Wireless Communication
Clear Connect RF Technology (434 MHz)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Dimensions (H × W × D)
4.35 in × 1.8 in × 1.35 in (110 mm × 46 mm × 34 mm)
Certifications
UL, cUL, FCC, IC, COFETEL, ANATEL, SUTEL; CA Title 24 compliant
Color
White

Additional Information

  • Manual-On/Auto-Off Functionality: Lights must be turned on manually; the sensor will automatically turn them off after the selected time delay when no motion is detected.
  • Test Mode: Features a dedicated test button; the lens illuminates orange in response to motion during test mode to assist with optimal placement.
  • Integration: Compatible with Lutron systems such as RadioRA 2, GRAFIK Eye QS, Maestro Wireless, and HomeWorks QS.
  • Energy Efficiency: Designed to meet California Title 24 requirements, promoting energy savings in commercial and residential settings.
