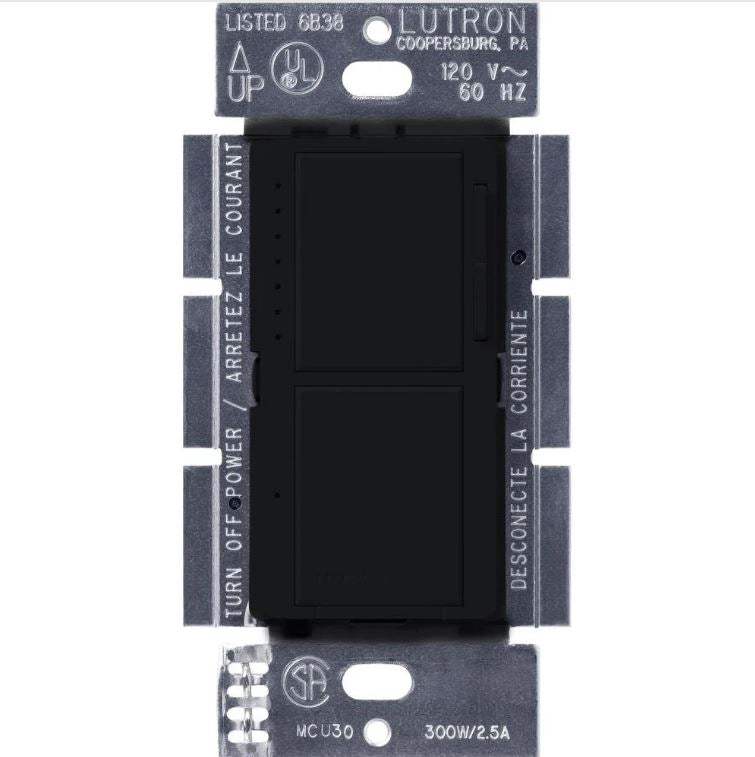

Lutron MACL-L3S25 Maestro Dual LED+ Digital Fade Dimmer/Digital Switch

Lutron MACL-L3S25 Maestro Dual LED+ Dimmer
Dimmer / switch timer with advanced technology for dimming LED, CFL, Incandescent, and Halogen bulbs.

Features
• Large tapswitch with a rocker-style dimmer for a standard designer wallplate opening.
• No neutral required for wiring into any home.
• Coordinating Claro and Stainless Steel wallplates available separately.
• 100% factory tested.
• No derating required when ganging this product.
• Dimmer Circuit:
– Advanced dimming technology designed for compatibility with a broad range of high efficacy bulbs.
– UL® Listed to control:
• Dimmable LED
• Halogen
• Incandescent
• Dimmable Compact Fluorescent Lamps (CFLs) with integrated ballast
– Low-end and high-end adjustments to accommodate a wide range of bulbs.
– NEMA SSL-7A Compliant (see note on page 2 regarding minimum load).
– Capable of controlling up to 75 W Dimmable LED / CFL or 300 W Incandescent / Halogen.
• Timer / Switch Circuit:  UL® Listed to control 2.5 A fan and / or lighting loads.

Specifications

Regulatory Approvals
• UL® Listed to U.S. and Canadian safety requirements (UL 1472 / CSA C22.2 184.1)
• NOM

Power and Ratings
• Dimmer Circuit:
– 120 V~ 60 Hz
– Maximum Load
• 75 W Dimmable LED / CFL or 300 W Incandescent / Halogen or Mixed bulb type (see Multigang and Mixed-Bulb-Type Ratings table on page 3)
Note: Dimmer is not rated for use with magnetic or electronic transformer loads.
– Minimum Load
• Minimum one bulb from the approved bulb list or 25 W Incandescent / Halogen
• Switch / Timer Circuit:
– 120 V~ 60 Hz
– Maximum Load
• 2.5 A general purpose (lighting or fan)
– No minimum load

Environment
• For indoor use only
• Operating temperatures 32 °F to 104 °F (0 °C to 40 °C)
• Relative humidity: 0% to 90% non-condensing Performance
• Power failure memory: Should power be interrupted, the control will return to its previous state when power is restored.
• Tested to withstand electrostatic discharge without damage or memory loss.
• Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 recommended practice on surge voltages in low-voltage AC power circuits.
• Precise color matching.
• Includes a Front Accessible Service Switch (FASS) for safe bulb replacement.

Application Requirements
• When using LEDs or CFLs, only bulbs marked or rated as Dimmable can be used.
