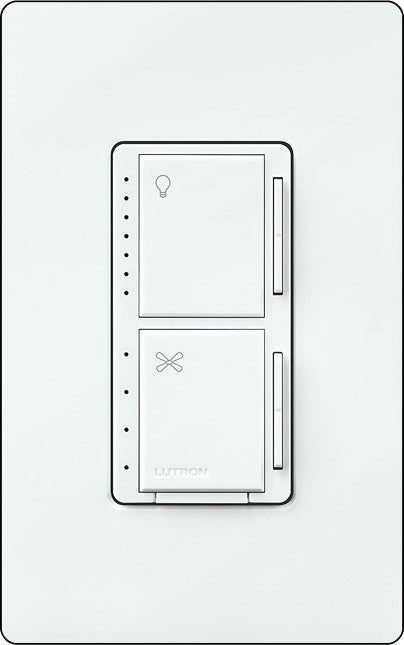

Maestro single pole, dual dimmer and 4-speed fan controller (max ratings are 1.5A fan and 75W LED/CFL or 250W incandescent/halogen for the light).
Quiet fan-speed control with dimmer for dimmable LED and CFL bulbs.
Documentation
Features
• LED+ includes the most advanced technology for superior dimming of LED, CFL, halogen, and incandescent bulbs.
• Tap on to preset light level/fan speed; tap off.
• Tap twice for full on.
• Touch rocker to adjust light level/fan speed.
• Four fan speeds plus off.
• Indicator lights display light level and fan speed.
• Single-pole only.
• No canopy module required.
• Requires separate wires for fan and light.
• No neutral wire required.
• UL Listed to control:
— Dimmable LEDs
— Dimmable compact fluorescent lamps (CFLs) with integrated ballast
— Halogen
— Incandescent
• Low-end adjustment to accommodate a wide range of bulbs.
• FASS - Front Accessible Service Switch for fixture bulb replacement.
• Prevents tripping of AFCI breakers.
• 100% factory tested.
• Fault Detection/Indication
— Light pull chain off detection
— Lamp failure detection
— Short circuit detection/protection
• Formerly C•L.
Product Specific Features
• Capable of controlling up to 75 W dimmable LED/CFL or 250 W incandescent/halogen lighting loads.
• Capable of controlling up to 1.5 A paddle-type ceiling fan loads.
*Wallplates are sold separately
