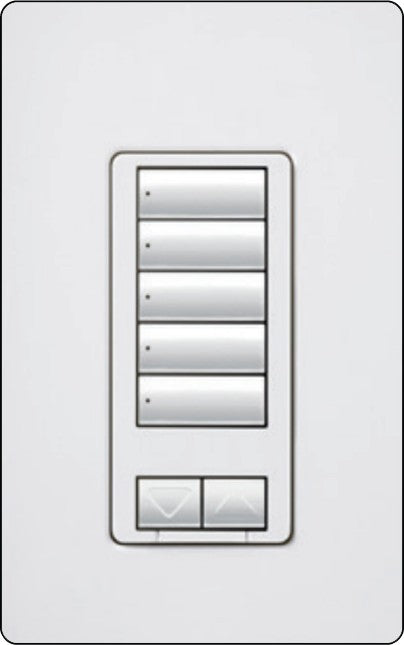

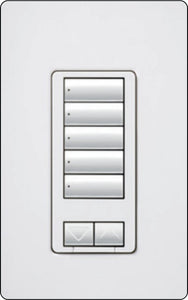

RadioRA 2 C•L Hybrid keypad; 5-button with raise/lower. Max rating is 100W approved LED/CFL, 450W incandescent/Halogen/MLV.
RadioRA 2 C•L Hybrid Keypads function as a dimmer and keypad combined into a single device. C•L Hybrid Keypads are great for retro-fit applications since they eliminate the need to install two separate devices.
C•L Hybrid Keypads are neutral-wire controls that can be used with small loads, such as screw-in CFL/LED lamps. Normal keypad operation will be available even if the attached load is not installed or the lamp is burned out.
C•L Hybrid Keypads can be controlled as part of a lighting control system and incorporate advanced features such as fade on/fade off and rapid full on.
C•L Hybrid Keypads feature large, easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night. The C•L Hybrid Keypad buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability. C•L Hybrid Keypads include a Front Accessible Service Switch (FASS) for safe lamp replacement.
Use only Lutron Designer (Claro or Satin Colors) wallplates. The mechanical design of the keypad is compatible with Lutron wallplates ONLY and is NOT compatible with any other manufacturer’s wallplate. Wallplates are sold separately. Lutron Claro and Satin Colors wallplates snap on with no visible means of attachment. Replacement Button Kits are available in a variety of colors and with custom engraving to identify clearly each button’s function.
C•L Hybrid Keypads are designed for use with permanently installed incandescent, tungsten halogen, CFL/LED, magnetic low-voltage, or Lutron Hi-lume A-Series LTE LED drivers only.
Documentation
Design Features
• Keypad buttons are programmable to select scene or room preset levels or positions.
• At the press of a keypad button, lights fade ON or OFF to desired levels and shades/draperies open or close to desired positions.
• Adjustable backlight intensity.
• Prepaid engraving included. Redeemable for one engraved Replacement Button Kit.
• Internal dimmer is assigned to top button by default. Tap top button to toggle
load ON/OFF.
• Internal dimmer can be assigned to any button on the C•L Hybrid Keypad and can be programmed to be controlled by any keypad.
• Designed for use with a wide variety of approved LEDs. Refer to the LED Product
Selection Tool at www.lutron.com/ledtool
• Can be installed in either single location or multiple-location (with Remote Dimmer) installations.
*Wallplates are sold separately
