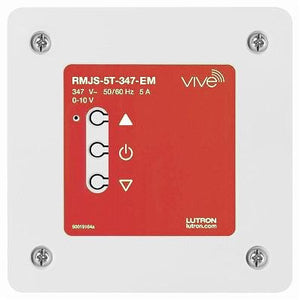

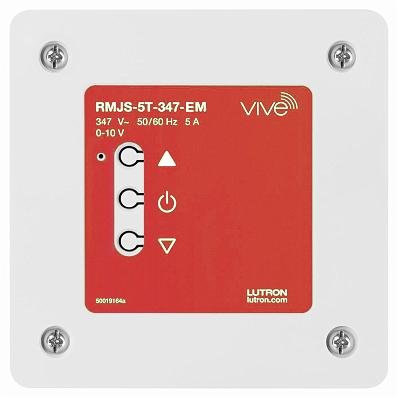

Vive 347V Emergency Dimming Module with 0-10V Control, 5A.
The Vive 347 V~ Dimming Module with 0–10 V- control is a radio frequency (RF) control that operates 0–10 Vcontrolled fluorescent ballasts or LED drivers based on input from Pico remote controls and Radio Powr Savr sensors. The dimming module with 0–10 V- control is ideal for small areas (e.g., classrooms, conference rooms, private offices). Communication with RF input devices (e.g., Pico remote controls, Radio Powr Savr sensors) is accomplished by using Lutron Clear Connect RF Technology. These products are also compatible with the Vive hub which enables an app-based or simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet or computer. It also enables control and monitoring of all Vive devices. The Vive hub can be added at any time. System reprogramming will be required.
Documentation
Features
• Controls up to 60 mA of 0–10 V- controlled fixtures together
• Model available for use with emergency lighting. See App Note 048628 at www.lutron.com
• Switches up to 5 A total of LED drivers or fluorescent ballasts
• Configurations available for non-dimmable (switched) loads. See app note 048753 on www.lutron.com
• Works with all ballasts and drivers that provide a current source that is compliant to IEC 60629 Annex E.2, and whose inrush current does not exceed NEMA410 standards for electronic ballast/driver
• 0–10 V- control link (current sink only) • Configurable high- and low-end trim
• Receives wireless inputs from up to 10 Pico remote controls, 10 Radio Powr Savr occupancy / vacancy sensors, and 1 Radio Powr Savr daylight sensor
• Utilizes Lutron Clear Connect RF Technology • Mounts in a standard 101.6 mm x 101.6 mm (4 in x 4 in) junction box. (NOTE: must use metal junction box, minimum depth 53.975 mm (2.125 in))
• For more information on this and related products, refer to
http://www.lutron.com/TechnicalDocumentLibrary/048753.pdf
Emergency Model Sequence of Operation With a Vive hub:
• Normal mode: The RMJS-5T-347-EM can dim loads as normal and respond to local button presses, Pico remote controls, and occupancy /daylight sensors.
• If the emergency dimming module loses power for greater than about 1 second, it will automatically go into emergency mode (full output, relay closed), when emergency power is restored to the dimming module, for as long as the Vive hub has no power. All local buttons, Pico remote controls and occupancy / daylight sensors will not respond. The emergency light level of the emergency dimming module can be configured using the Vive hub.
• When normal power is restored to the Vive hub and emergency dimming module, the emergency dimming module will return to the previous light level in most cases within 3 minutes, but guaranteed within 10 minutes of normal power being restored. It will again accept local button control, input from Pico remote controls, and occupancy /daylight sensors.
Without a Vive hub:
• Normal mode: The RMJS-5T-347-EM can dim loads as normal and respond to local button presses, Pico remote controls, and occupancy /daylight sensors.
• If the emergency dimming module loses power for greater than about 1 second, it will automatically go into emergency mode (full output, relay closed) for 120 minutes, when emergency power is restored to the dimming module. All local buttons, Pico remote controls and occupancy /daylight sensors will not respond for 120 minutes.
• When normal power is restored, the emergency dimming module will remain in emergency mode for 120 minutes (full output, relay closed). It will then return to the previous light level and accept local button control, inputs from Pico remote controls, and occupancy /daylight sensors.
