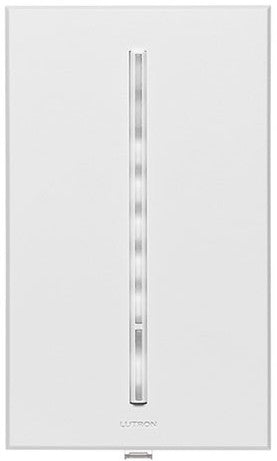

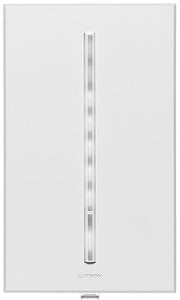

RadioRA 2 Architectural RF Grafik T Phase-Selectable Dimmer; Max ratings are 500W electronic low voltage, 250W dimmable LED, 500W incandescent/halogen, 300W magnetic low voltage, 3.3A Hi-Lume 1% 2-wire LED driver (10 driver maximum), or 3.3A 2-wire fluorescent ballasts.
RadioRA 2 architectural RF GRAFIK T local controls function much like standard dimmers or switches, but can be operated as part of a lighting control system. GRAFIK T controls are useful in locations where single circuits of lighting need to be dimmed or switched.
Documentation
Features
• Controls include dimmers, switches, and companion devices.
• Simple touch control.
• Distinctive architectural aesthetic.
• Softly lit white LEDs indicate light level and coordinate with any décor.
• Advanced microprocessor dimming technology for control of dimmable LED lamps.
• Low-end and high-end trim are available for improved LED dimming performance (dimmer only).
• Optional neutral connection available for superior LED dimming performance (C•L dimmer only).
• Phase selectable technology allows forward or reverse phase dimming for compatibility with more load types.
• Installs in single-pole or multi-location applications. Companion devices are available for multi-location control with dimmers and switches (maximum 4 companion devices per dimmer or switch, 1 main control per circuit).
• Use Lutron GRAFIK T wallplates (sold separately). Available in multiple Colors and Finishes.
• Lutron GRAFIK T wallplates snap on with no visible means of attachment.
