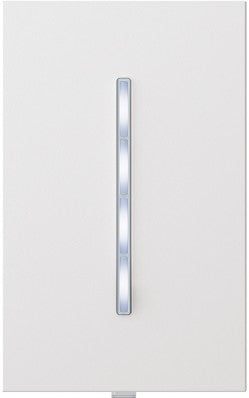

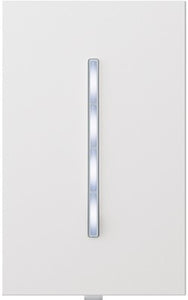

RadioRA 2 Grafik T C•L Hybrid Keypad; 4-Button. Max ratings are 250W dimmable LED, 600W incandescent/halogen, 300W magnetic low voltage, 3.3A Hi-Lume 1% 2-wire LED driver (10 driver maximum), or 3.3A 2-wire fluorescent ballasts.
RadioRA 2 architectural GRAFIK T RF C•L Hybrid keypads function as a dimmer and keypad combined into a single device. Hybrid keypads are great for retro-fit applications since they eliminate the need to install two separate devices. Normal keypad operation is available if no load is connected or load burns out.
Documentation
Features
• Hybrid keypad allows for local control of load as well as typical keypad functionality.
• Hybrid keypad will function as a normal keypad when no load is installed or load burns out.
• Custom, backlit, engraved, scene/ zone descriptions on faceplate.
• Dynamic Backlighting Management (DBM) automatically adjusts the intensity of the backlit engraving to ensure text is readable in any light.
• All buttons are fully programmable, including the raise/lower functionality.
• C•L technology with microprocessor based dimming for control of dimmable LED lamps.
• If using LED bulbs, they must be Lutron compatible! For compatibility and performance information, visit our website at www.lutron.com/led, which is constantly being updated.
• Optional neutral connection available for superior LED dimming performance.
• Simple touch control.
• Distinctive architectural aesthetic.
• Low-end and high-end trim are available for improved LED dimming performance.
• Installs in single-pole or multi-location applications. Companion devices are available for multi-location control with a hybrid keypad (maximum 4 companion devices per keypad, 1 main control per circuit).
• Use Lutron GRAFIK T wallplates (sold separately). Multiple colors and finishes.
• Lutron GRAFIK T wallplates snap on with no visible means of attachment.
