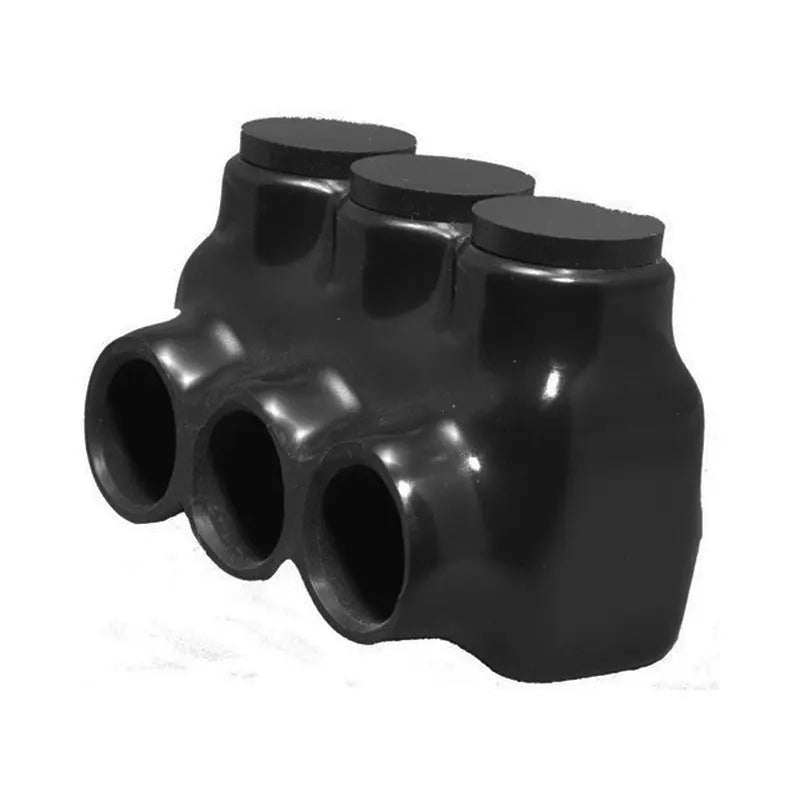

Morris 97519 Black Insulated Multi-Cable Connector - Single Entry, Wire Port 3, Wire Range 2 - 14

Black Insulated Electrical Power Multi-Cable Connectors 3 Port #2 - #14 - Single Side Entry features include:

• Wires Enter the Same Side of the Connector
• Insulated with rugged high-dielectric Rubber/Vinyl Coating
• Pre-Filled with Oxide Inhibitor
• Single Side Entry Cable Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• Plugs Marked with Connector Max Wire Size for easy identification
• One wire per terminal
• Temperature Range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed thru 750MCM
• Rated for use with 194°F(90°C Cables)
• 600 Volt
• Indoor Use Only
• Dimension Measurements = Inches
• Order Qty of 1 = 1 Piece

Download Spec Sheet
