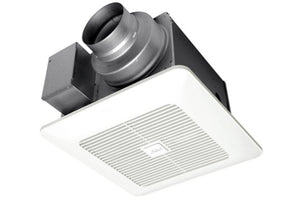

Panasonic FV‐0511VKSL2 WhisperGreen Select Fan/Light, 50-80-110 CFM, Multi-Speed
$288.99 USD
Panasonic-FV‐0511VKSL2
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Panasonic Fan/LED Light with ECM Motor and Pick‐A‐Flow 50, 80 or 110 CFM, pre‐installed multispeed module (LED chip panel incorporates night light).
PRODUCT DETAILS
Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements. First, our redesigned elegant grille incorporates a 10W dimmable LED chip panel with <1W LED night light for energy efficient illumination. Another new feature is our single-hinged Flex-Z Fast™ bracket for more flexible and easy installation. Other enhancements include an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.
KEY FEATURES
- Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
- Pick-A-Flow Airflow Selector; features a built-in speed selector (50-80-110 CFM model) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
- New! Elegant grille with integrated 10W dimmable LED chip panel with <1W LED night light; JA-8 compliant for CA Tittle 24
- New! Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
- New! Improved Flex-Z Fast™; single-hinge bracket with added flexibility, fast and easy installation
PRODUCT SPECIFICATIONS
| Specification | Description |
|---|---|
| Model number | FV-0511VKSL2 |
| Fan Type | Fan/Light -LED |
| Advanced Features | Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology, Multi-Speed with Time Delay, Dimmable LED Light |
| Air Volume Supply (CFM) | @0.1= 30,40,50,60,70,80,90,100,110 @0.25= 30,41,50,60,70,80,90,101,110 @0.375= 30,40,50,60,69,78,90,99,103 |
| Noise (Sones) | @0.1"SP (30,40,50,60,70,80,90,100 CFM) = <0.3 , 0.4 @ 110 CFM @0.25"SP(30,41,50,60,70,80,90,101,110 CFM) = 0.4, 0.4, 0.4, 0.4, 0.5, 0.5, 0.6, 0.8, 0.8 |
| Power Consumption (Watts) | 30 CFM=2.5, 40=2.7, 50=3.2, 60=3.7, 70=4.6, 80=5.3, 90=6.7, 100=8.2, 110=10.5 |
| Energy Efficiency (CFM/Watt) | 30 CFM=12.0, 40=14.8, 50=15.7, 60=16.2, 70=15.8, 80=15.3, 90=13.5, 100=12.2, 110=10.5 |
| Current (Amps) | 30 CFM=0.04, 40=0.04, 50=0.04, 60=0.05, 70=0.06, 80=0.06, 90=0.08, 100=0.09, 110=0.11 |
| Power Rating (V/Hz) | 120/60 |
| Motor Type (AC/DC) | DC (ECM) |
| ENERGY STAR® Certified | Yes |
| Other Approved Codes and Standards | AHSRAE 62.2, LEED, CA T-24, CALGreen |
| Duct Diameter | 4 inch |
| Mounting Options | Horizontal |
| Ventilation Design Approach | Bathroom Exhaust Fan |
| Warranty | 6 years ECM Motor, 3 years all other parts |
| Industry | Residential, Light Commercial |
| Radiation Damper Available | Yes, PC-RD05C5 |
| Master Carton Gross Weight (lbs.) | 12.50 (1 unit) |
| Master Carton Dimensions (HxWxD) | 11.85 x 14.17 x 16.73 |
| UL Listed for Tub/Shower Enclosure when GFCI Protected | Yes |
Resources
WhisperGreen Select™ Model: FV-0511VKSL2, Ventilation Fan/Light with Pre-Installed Multi-Speed
WhisperGreen® Select™ is a ground-breaking IAQ solution that has revolutionized the ventilation fan industry with a set of features that enable customization and easier installation. To the builder and professional installer, Panasonic continues to be the innovation leader with high performance ventilation solutions that are built to last. WhisperGreen Select’s unique design and superior energy efficiency are achieved through engineering expertise, provided by a company who sets the standard for quality and value.
WhisperGreen Select™ meets stringent green building codes and standards, including ASHRAE 62.2, LEED, ENERGY STAR® for Homes 3.0, IAP, JA8 Title 24, CA Title 24 and WA Ventilation Code.
*Ceiling Radiation Damper: WhisperGreen Select™ is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).
Installed Performance guarantees up to .375” w.g. static pressure and certified quiet operation at 0.25" w.g. static pressure
Although ASHRAE, ENERGY STAR®, LEED for Homes, and HVI have set the industry standard for performance measurement at 0.1” and 0.25" w.g., WhisperGreen® Select™ fans not only provide the powerful CFM output at 0.375" w.g. that is more representative of most installations. Sones have also been certified at 0.25" w.g. to provide a more realistic installed value. So they are quiet under pressure and after installation.
Pick-A-Flow™ Airflow Technology – You Choose The CFM
Built-in Pick-A-Flow™ Airflow Selector provides the unique ability to select your required airflow (50-80-110 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.
Plug 'N Play Modules To Build Your Perfect Vent Fan
WhisperGreen Select's customization features really kick in with a set of patented Plug 'N Play™ modules that give you the flexibility to design the perfect fan in advance, or on the fly, for a variety of ventilation applications. The first snap-in slot is dedicated to the pre-installed Multi-Speed (0, 30 to 110 CFM) module with high/low delay timer. The two remaining slots can accommodate the SmartAction® Motion Sensor and/or Condensation Sensor. Refer to the Accessories Tab for more information on our remarkable Plug ‘N Play modules.
ECM Motor- Best Performing, Most Energy Efficient Motor Available
WhisperGreen® Select™ features the same revolutionary ECM motor that comes with our WhisperGreen line of products. With built-in SmartFlow™ technology, WhisperGreen® Select™ is designed to perform as rated, providing precision ventilation. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance.
WhisperGreen Select™ is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run.
New Elegant Grille with integrated LED Lighting
Our new redesign elegant grille has one integrated 10 Watt dimmable LED chip panel/3000 Kelvin Warm White/90CRI/700 lumens/70 LPW. The LED chip panel is ENERGY STAR 2.0 certified/JA-8 compliant for CA Title 24/50,000 hours rated average life/<1W LED night light.
Fast, Flexible and Easy Installation
The Flex-Z Fast™ Installation Bracket with single-hinge articulating joints to easily position bracket in between the joist and/or through ceiling hole installs the fan exactly where you want it, in old or new construction. WhisperGreen Select incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design. For short runs, you can go with a smaller duct size, but long runs are OK too - just move up to the 6 in. duct. Also fits in 2 x 8 construction.
Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.
ENERGY STAR®- Certified for Energy Savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
Additional Benefits
- Unique Plug ’N Play modules provide up to three value-added features
- Integrated 6" dual duct adapter enhances installation options / Fits in 2 x 8 construction
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier, and assists with the decrease in leakage in the building envelope during blower door testing
- Suitable for installation in ceilings insulated up to R60
- Dual access junction box simplifies wiring in tight spaces
- UL listed for tub/shower enclosure when GFCI protected
- UL listed for use with the Panasonic Ceiling Radiation Damper (model # PC-RD05C5)
- 6 year warranty on ECM motor, 5 years on LED, 3 years on parts
- Dual access junction box simplifies wiring in tight spaces
