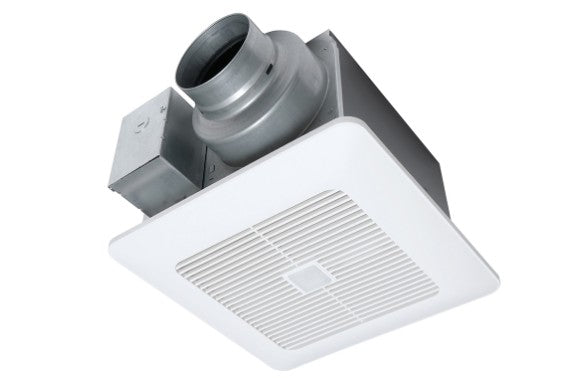

Panasonic FV‐0511VQC1 WhisperSense DC Fan, 50-80-110 CFM

Name: Panasonic FV‐0511VQC1 WhisperSense DC Fan, 50-80-110 CFM
Brand: Panasonic
SKU: Panasonic-FV‐0511VQC1
Price: 213.99 USD
Availability: InStock

$213.99 USD

Up to 34% off

$213.99 USD

$213.99 USD ~~$322.00 USD~~

Shipping calculated at checkout.

Panasonic-FV‐0511VQC1

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

Panasonic Fan with ECM Motor and Pick‐A‐Flow 50, 80 or 110 CFM, built‐in dual motion and humidity sensors.

PRODUCT DETAILS

WhisperSense® DC™ Precision Spot Ventilation fan with built-in Dual Sensor Technology (Motion & Moisture) for automatic moisture and odor control. Features Pick-A-Flow™ speed selector switch to select required airflow (50-80-110 CFM) and ECM Motor with SmartFlow® technology for optimum performance. Can be used to comply with the latest codes and standards.

KEY FEATURES

Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow Speed Selector (50-80-110 CFM) combined with SmartFlow™ Technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
Dual Sensor Technology (Motion & Moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling

PRODUCT SPECIFICATIONS

Specification	Description
Static Pressure in inches w.g.	0.1\|0.25\|0.1\|0.25\|0.1\|0.25
Air Volume (CFM)	110\|111\|80\|83\|50\|53
Noise (Sones)	<0.3\|0.9\|<0.3\|0.6\|<0.3\|0.4
Power Consumption (Watts)	10.6\|16.4\|5.9\|10.8\|4.0\|7.2
Energy Efficiency (CFM/Watt)	10.6\|6.9\|13.6\|7.7\|12.5\|7.4
Speed (RPM) 1342 1480	957\|1239\|821\|1172\|756\|1093
Current (Amps)	0.18\|0.26\|0.11\|0.18\|0.07\|0.13
Power Rating (V/Hz)	0.27
Motor Type (AC/DC)	DC
Duct Diameter	4" or 6"
Mounting Opening (in sq.)	10-1/2"
Grille Size (in sq.)	13"
Type of Motor Bearing	Ball
Thermal Fuse Protection	Yes
Blower Wheel Type	Sirocco
UL tub/Shower Enclosure	Yes
Washington VIAQ Code	Yes
California Title 24 Compliant	Yes
Mfg in ISO 9001 Certified Facility	Yes
Gross Weight (lbs)	11.2
ENERGY STAR Qualified	Yes

Resources

The Power of Performance, with Exclusive Smart Sensing Technology

WhisperSense DC is a precision spot ventilation fan that features built-in dual sensor technology (motion & moisture) that provides built-in redundancy for the ultimate in automatic moisture and odor control. WhisperSense DC improves IAQ by effectively removing moist, polluted air from any room. A powerful, yet efficient ECM Motor with SmartFlow™ technology ensures optimum CFM output, regardless of a long or difficult duct run.

ECM Motor with SmartFlow™ Technology

WhisperSense^® DC™ is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output.

Pick-A-Flow Speed Technology

Built-in Pick-A-Flow speed selector provides the unique ability to select your required airflow (50-80-110 CFM) with the simple flip of a switch.

Dual Sensor Technology – Motion and Moisture

Three ways the fan can function

Motion on/Motion off
Motion on/Humidity off
Humidity on/Humidity off

Variable humidity controls from 30-80% Relative Humidity (RH)
Adjustable delay timer from 30 seconds to 60 minutes

Long Life Means Reduced Costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation Flexibility

The Flex-Z Fast™ Installation Bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. WhisperCeiling DC incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design.

ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR^® certified, where guidelines exist. ENERGY STAR^® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.

WhisperSense DC was awarded 2018 Most Efficient. This mark recognizes WhisperSense DC as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.
