Panasonic-FV-08VRE2
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.

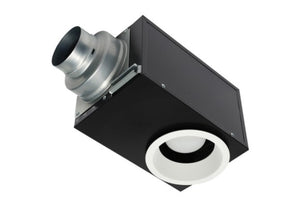

Recessed Fan/LED light combination, 80 CFM (LED Lamp included).
PRODUCT DETAILS
WhisperRecessed LED incorporates a powerful, yet quiet 80 CFM fan behind an elegant recessed LED light. Includes a dimmable 8W, ENERGY STAR® 2.0 certified GU24 base LED lamp, beautiful lighting with 6" aperture and advanced luminaire design. Can be used to comply with the latest codes and standards.
KEY FEATURES
- Architectural grade recessed fan/LED light
- Ideal for use in bathrooms, living rooms or laundry rooms
- Quiet and powerful 80 CFM ventilation hidden above the ceiling
- (1) replaceable 8W, ENERGY STAR® 2.0 certified GU24 base LED lamp
- Beautiful lighting with 6" aperture and advanced luminaire design
Specification | Description |
---|---|
Additional info | *Can be used to comply with CALGreen when controlled by the Panasonic Condensation Sensor Plus. NOTE: 0.25" w.g. = Installed Performance |
Advanced Features | Single Speed |
Air Volume (CFM) | 80, 66 |
Air Volume Exhaust (CFM) | 80 @ 0.1" SP, 66 @ 0.25" SP |
Blower Wheel Type | Sirocco |
CALGreen | Yes* |
California Title 24 Compliant | Yes |
CFM | 80 |
Color Rendering Index | 92 |
Color Temperature (Kelvin) | 2,700 |
Construction Type | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
Current (Amps) | 0.15 |
Ventilation Design Approach | Continuous Ventilation. Spot Ventilation |
Duct Diameter | 4" & 6" |
Energy Efficiency (CFM/Watt) | 4.4 |
ENERGY STAR® Certified | Yes |
Fan Type | Fan/Light - LED |
Gross Weight (lbs) | 10.4 |
Housing Collar Opening (Inches) | 6-1/2" Round |
Industry | Residential. Light Commercial |
Lamp Model # (Green Creative) | 8BR30DIM927/GU24 |
Lamp Watts | 1 x 11 |
Lumens (lm) | 720 |
Lumens Per Watt (LPW) | 90 |
MAX. Current (Amps) | 0.19 |
Mfg in ISO 9001 Certified Facility | Yes |
Motor Type (AC/DC) | AC |
Mounting Options | Ceiling Mount (UL). Tub/Shower (UL) |
Noise (Sones) | 80 @ 0.1" SP = 1.0, 66 @ 0.25" SP = 0.8 |
Power Consumption (Watts) | 18.5 |
Power Rating (V/Hz) | 120/60 |
Product Family Name | WhisperRecessed LED |
Rated Life (hours) | 25,000 |
Speed (RPM) 1342 1480 | 1342 |
Static Pressure in inches w.g. | 0.1, .25 |
Thermal Fuse Protection | Yes |
Trim Outer Diameter (Inches) | 7-1/4" Round |
Type of Lamp Socket | GU24 |
Type of Motor Bearing | Ball |
UL tub/Shower Enclosure | Yes |
Washington VIAQ Code | Yes |
Resources
WhisperRecessed LED FV-08VRE2 80 CFM, Architectural Designed, Ceiling Mount Fan/Light
Panasonic continues to light the way in innovative ventilation technology, and now we're putting a spotlight on design with an architectural grade recessed light fixture that provides powerful, yet quiet ventilation. This 80 CFM exhaust fan disappears behind the ceiling and doesn't skimp on function: ideal for bathroom, living room and laundry room. Clean air and clean design add up to a cleaner environment with energy efficient WhisperRecessed LED™.
LED Lamp Provides Warm, Energy Efficient Illumination
WhisperRecessed LED now includes a more cost effective, energy efficient 8W ENERGY STAR® 2.0 certified, GU24 base, dimmable LED lamp. WhisperRecessed LED uses an ultra energy efficient LED lamp.
Long Life Means Reduced Costs
When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fan/light combinations use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.
Installation Flexibility
WhisperRecessed LED incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design. For short runs, you can go with a smaller duct size, but long runs are OK, too - just move up to 6 in. duct. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fan/light combinations are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.
ENERGY STAR® Certified for Energy Savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
