Panasonic-FV-10VE2
Couldn't load pickup availability
Panasonic Intelli‐Balance 100 ‐ Temperate Climate ERV, Pick‐A‐Flow™ Airflow Selectors on supply and exhaust 50, 60, 70, 80, 90, or 100 CFM with 2 ECM motors with boost mode, ASHRAE 62.2 Timing Function, 8‐7/8" housing depth. - New Model
Intelli-Balance™ 100 is ideal for single family homes and multi-family units.It is a customizable, high performance, high efficiency Energy Recovery Ventilator (ERV) that’s designed to help you meet ASHRAE 62.2 requirements. This unique and cost effective ERV was engineered for total versatility and installation flexibility, in any climate zone. Now with Boost function, which can move the fan speed to high when activated.
KEY FEATURES
- New! Occupant controllable Boost function. Moves fan speed to high when activated
- Two revolutionary DC motors with Smart Flow™ technology ensure optimum CFM output
- Pick-A-Flow airflow selector (50 to 100 CFM) provides customizable airflow to create balanced, positive or negative pressure within the home
- MERV 8 filter included; optional MERV 8 and MERV 13 replacements available
- Engineered for use in any North America Climate Zone
Product Specifications
| Specification | Description |
|---|---|
| Air Volume Exhaust (CFM) | 95 @ 0.1" SP, 95 @ 0.4" SP |
| Air Volume Supply (CFM) | 99 @ 0.1" SP, 101 @ 0.4" SP |
| Master Carton Dimensions (HxWxD) | 28.46" x 12.09" x 39.21" |
| Duct Diameter | (4) 4" or 6" |
| Energy Recovery Ventilator (ERV) | Energy Recovery Ventilator (ERV) |
| ENERGY STAR® Certified | No |
| Installation | Ceiling Mount and Wall Mount |
| Motor Type (AC/DC) | (2) DC Motors |
| Power Consumption (Watts) | 62 @ 0.1" SP , 80@ 0.4" SP |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | Intelli-Balance 100 |
| UL Listed for Tub/Shower Enclosure when GFCI Protected | No |
| Warranty | 6 year DC Motor, 3 Year Parts |
| Master Carton Gross Weight (lbs.) | 57.3 |
Resources
Intelli-Balance™ 100 FV-10VE2 50-60-70-80-90-100 CFM, Ceiling or Wall Mount ERV
Tightly built homes and buildings utilizing exhaust only fans can create negative pressure. Intelli-Balance 100 solves this by supplying air to replace exhausted air, helping to balance air pressure within the home. Intelli-Balance 100 ERV uses four integrated dual 4” or 6” round duct adaptors – two to exhaust stale air and two to supply fresh air. Its low, continuous run helps remove moist, stale air and replace it with fresh air . Intelli-Balance 100 can be ceiling or wall mounted, does not require connection to the Central HVAC or the addition of a condensation line. This allows it to be installed in many places throughout the home to meet IAQ, health and comfort needs.
DC Motor Technology - The Best Performing, Most Energy Efficient Motor Available
Intelli-Balance 100 uses two (2) DC brushless motors with built-in SmartFlow™ technology. When the ERV senses static pressure, its speed is automatically increased to ensure optimal CFM output; regardless of a complicated duct run. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the ERV’s performance. Both DC motors are rated for continuous run and are totally enclosed to ensure long-life and continuous quiet operation. Each motor also comes equipped with a thermal cutoff fuse.

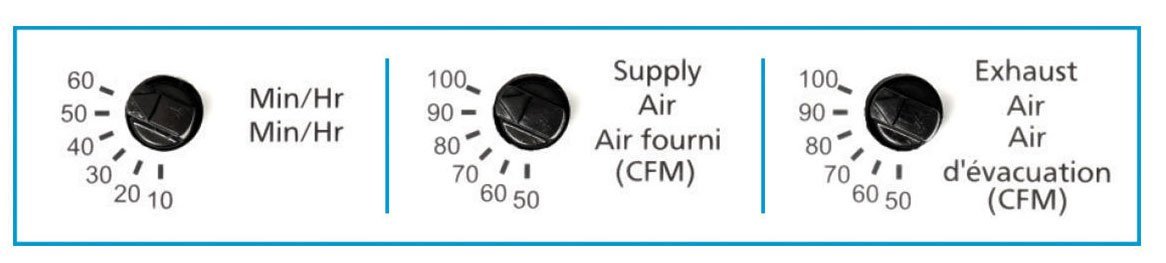

Multi-Speed Selector
Intelli-Balance™ 100 includes a built-in Multi-Speed selector that provides the unique ability to select your required supply (50-60-70-80-90-100 CFM) and exhaust airflow(50-60-70-80-90-100 CFM), with the simple turn of a dial. This truly customizable airflow capability allows you to create balanced, positive or negative pressure within the home.
ASHRAE 62.2 2010 TIMING FUNCTION
The American Society of Heating, Refrigerating and Air Conditioning Engineers
(ASHRAE) set a standard for whole house ventilation, requiring that continuous
mechanical ventilation be 7.5 CFM per bedroom (master bedroom X 2) plus 1 CFM
per 100 square feet, with sones not to exceed 1.0. ASHRAE 62.2-2013 requires a
ventilation rate of 7.5 CFM per person plus 3 CFM per 100 square feet. Please check
with your local jurisdiction to determine which ventilation standard you should follow.
Panasonic Intelli-Balance™ 100 ERV is an affordable, efficient way to meet the ASHRAE 62.2 standard.
Operation in Extreme Temperatures
FV-10VE2 (Temperate Climate Model): Recommended for areas where temperatures can drop as low as 14°F (-10°C). When the outdoor temperature is < 14°F (-10°C), the defrost cycle is initiated and the product will stop operating for 56 mins, then operate in heat exchange mode for 4 minutes in order to sample the outdoor temperature (exhaust and supply air are 50 CFM). Defrost cycle overrides the ASHRAE 62.2 timing function.
FV-10VE2 is recommended for areas where temperature can drop as low as -22°F (-30°C).
Exchange Capillary Core
Indoor and outdoor air pass through Panasonic’s patented capillary core designed to transfer heat and moisture. This process tempers supply air while balancing moisture levels inside to outside. The core’s high latent energy (moisture) transfer makes Intelli-Balance 100 ideal for use in most climate zones, as it helps expel moisture during incidences of high relative humidity (RH) and helps return moisture back inside during the winter for a healthier, more comfortable living environment. Core material permeated with anti-mold treatment. to help prevent mold in the home.
Filters and Maintenance
Easy access panel allows for quick and easy product maintenance and filter checks. Intelli-Balance 100 has two filters that clean the exhaust and supply air before passing through the ERV core, extending the life of the core. Intelli-Balance 100 comes equipped with a MERV 8 filter that can easily be upgraded to a MERV 13. Convenient light and sound indicators signal when it’s time to clean the filters using the soft brush attachment of a vacuum. The supply air filter should be inspected every 90 days and replaced every 6 months to maintain the ERV’s peak performance.
