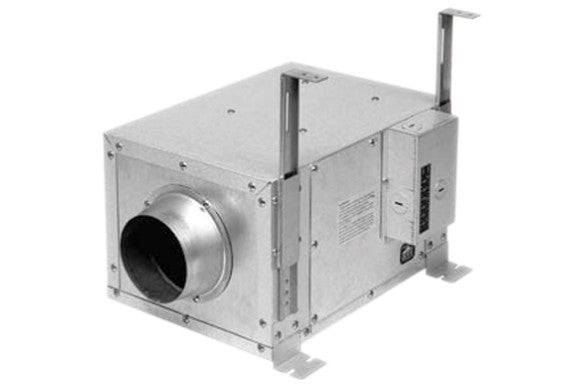

Panasonic FV‐20NLF1 WhisperLine Remote Mount In-Line Fan 240 CFM
This product is discontinued.
New version: Panasonic VTX600L 6" VTX Series Inline Blower Fan - Centrifugal 257 CFM @ .2"sp
Panasonic Remote Mount Inline Fan, 240 CFM.
PRODUCT DETAILS
WhisperLine 240 CFM remote mount in-line fan for single or multiple inlets. Insulated housing prevents condensation and noise; tapered 6” duct adapter provides easy connection. Features five positions for installation. Joist or truss attachment brackets and suspension brackets included. Can be used to comply with the latest codes and standards.
KEY FEATURES
- Remote mount in-line fan for single or multiple inlets
- Insulated housing to prevent condensation and noise
- Tapered duct adapter for easy connection
- Five positions for installation
- Joist or truss attachment brackets included
Product Specifications
| Specification | Description |
|---|---|
| Advanced Features | Single Speed |
| Air Volume Exhaust (CFM) | 240 @ 0.2" SP, 225 @ 0.3" SP, 200 @ 0.4" SP |
| Master Carton Dimensions (HxWxD) | 14-11/16 x 20-3/8 x 11-3/8 |
| CFM | Greater than 150 |
| Other Approved Codes and Standards | ASHRAE 62.2, LEED, California Title 24, Washington VIAQ |
| Construction Type | Single Family/Manufactured Housing. Renovation/Remodeling. |
| Current (Amps) | 0.46A |
| Ventilation Design Approach | Spot Ventilation. Continuous Ventilation. |
| Duct Diameter | 6" |
| Energy Efficiency (CFM/Watt) | 4.1 CFM/W |
| ENERGY STAR® Certified | Yes |
| Fan Type | Fan Only |
| Industry | Residential. Light Commercial. |
| Motor Type (AC/DC) | AC |
| Mounting Options | Ceiling Mount |
| Power Consumption (Watts) | 240 @ 0.2" SP = 55.5W, 225 @ 0.3" SP = 53.5W, 200 @ 0.4" SP = 51.1W |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | WhisperLine |
| Radiation Damper Available | No |
| Warranty | 3 Year on Parts |
| Master Carton Gross Weight (lbs.) | 19.1 |
Resources
WhisperLine 240 CFM, Remote Mount, In Line Ventilation Solution
Panasonic WhisperLine™ fans are designed for multiple-task ventilation. Now you can ventilate multiple areas or multiple rooms with just one fan. Provides an effective way to remotely mount a fan and run single or multiple inlets for over-the-shower, tub, toilet and/or vanity in a single bathroom. Features a blower wheel designed to draw air in both sides, allowing more area for air to enter the wheel. This versatile ventilation fan can be installed in five different positions with the included joist, truss and suspension brackets.
Multitasking Ventilation Fan
This remote-mounted fan can exhaust stale, humid or contaminated air from multiple points of a room or multiple rooms. Place inlets over the shower, tub, toilet and vanity in a single bathroom, or in a bathroom, laundry, and craft room to exhaust with a single remote-mounted WhisperLine fan.
Fine-Tune the Airflow for Each Inlet
Low profile grilles are adjustable so you can balance airflow between the nearest and furthest inlets to create even circulation.
Installation Flexibility
This in-line fan can be installed in five different positions between joists and trusses. Additional suspension brackets simplify installation.
ENERGY STAR® Certified for Energy Savings
ENERGY STAR® certified vent fans meet strict parameters set by the US Environmental Protection Agency. Panasonic ventilation fans are ENERGY STAR® certified where guidelines exist, and provide greater efficiency and comfort with less noise. High performing motors and improved blade design deliver superior performance and long life you expect from a premium Panasonic ventilation fan.
