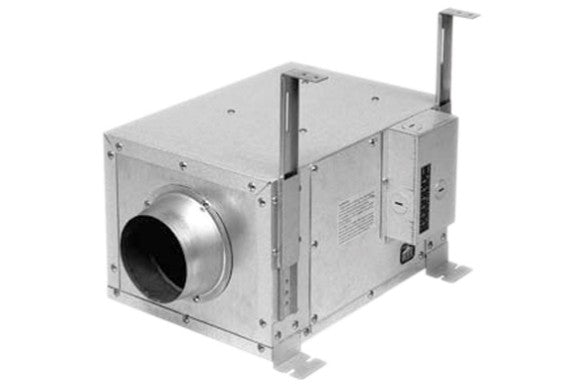

Panasonic FV-40NLF1 WhisperLine Remote Mount In-Line Fan 440 CFM
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
This product is discontinued.
New version: Panasonic VTX600L 6" VTX Series Inline Blower Fan - Centrifugal 257 CFM @ .2"sp
Panasonic Remote Mount Inline Fan, 440 CFM.
PRODUCT DETAILS
WhisperLine 440 CFM remote mount in-line fan for single or multiple inlets. Insulated housing prevents condensation and noise; tapered 8” duct adapter provides easy connection. Features five positions for installation. Joist or truss attachment brackets and suspension brackets included. Can be used to comply with the latest codes and standards.
KEY FEATURES
- Remote mount in-line fan for single or multiple inlets
- Insulated housing to prevent condensation and noise
- Tapered duct adapter for easy connection
- Five positions for flexible installation
- Joist or truss attachment brackets included
Product Specifications
| Specification | Description |
|---|---|
| Advanced Features | Single Speed |
| Air Volume Exhaust (CFM) | 440 @ 0.2" SP, 421 @ 0.3" SP, 407 @ 0.4" SP |
| Master Carton Dimensions (HxWxD) | 14-11/16 x 20-3/8 x 11-3/8 |
| CFM | Greater than 150 |
| Other Approved Codes and Standards | ASHRAE 62.2, LEED, California Title 24, Washington VIAQ |
| Construction Type | Single Family/Manufactured Housing. Renovation/Remodeling. |
| Current (Amps) | 1.10A |
| Ventilation Design Approach | Spot Ventilation. Continuous Ventilation. |
| Duct Diameter | 8" |
| Energy Efficiency (CFM/Watt) | 3.2 CFM/W |
| ENERGY STAR® Certified | No |
| Fan Type | Fan Only |
| Industry | Residential. Light Commercial. |
| Motor Type (AC/DC) | AC |
| Mounting Options | Ceiling Mount |
| Power Consumption (Watts) | 440 @ 0.2" SP = 136W, 421 @ 0.3" SP = 132W, 407 @ 0.4" SP = 130W |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | WhisperLine |
| Radiation Damper Available | No |
| Warranty | 3 Year on Parts |
| Master Carton Gross Weight (lbs.) | 19.1 |
Resources
WhisperLine 440 CFM, Remote Mount, In Line Ventilation Solution
Panasonic WhisperLine™ fans are designed for multiple-task ventilation. This means that you can ventilate multiple areas or multiple rooms with just one fan. WhisperLine fans are a great way to remotely mount a fan and run single or multiple inlets for over the shower, tub, toilet and/or vanity in a single bathroom. WhisperLine features a blower wheel that's designed to draw air in both sides allowing more area for air to enter the wheel. This versatile product can be installed in five different positions and joist; truss and suspension brackets are included.
Multitasking Ventilation Fan
This remote-mounted fan can exhaust stale, humid, or contaminated air from multiple points of a room or multiple rooms. For example, you can place inlets over the shower, tub, toilet and vanity in a single bathroom, or in a bathroom, laundry, and craft room to exhaust with a single remote-mounted WhisperLine fan.
Fine-Tune the Airflow for Each Inlet
The low profile grilles are adjustable so you can balance the airflow between the nearest and furthest inlets to create even air circulation.
Installation Flexibility
This in-line fan can be installed in five different positions between joists and trusses. Additional suspension brackets make your installation as easy as possible.
