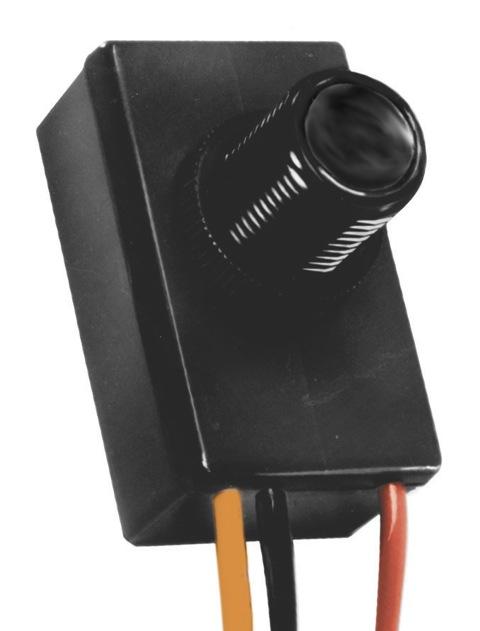

Precision LCA624D Lumatrol Low Voltage Photo Control / 24 Volt / 10 Amp / Fixed Position Mounting
Precision Multiple Controls - Photocontrols and Accessories | Products |SKU: LCA624D
Precision LCA624D Lumatrol Low Voltage Photo Control / 24 Volt / 10 Amp / Fixed Position Mounting
Specifically designed for use inside compatible light fixtures or in weatherproof enclosures 2” in diameter or larger.
LCA Specifications Low voltage photo controls
Housing: Durable, high impact Lexan® housing, ultrasonically welded for maximum strength.
Nylon locknut provided. Compact in size, LCA series can be mounted directly within a lighting fixture or in lighting standards that are 2 inches in diameter or larger.
Photocell: Sealed Silicon Sensor
Turn-on: 1 to 3 foot-candles.
Turn-on/ off Ratio: 1:1.5
Time Delay: 1-5 seconds.
Switch Type: Single-pole, single-throw. Contact position at night normally closed.
Temperature Range: -30° to 175°F
Lead Wire: Color coded lead wire. Wire length: 15 inches.
Threaded Stem: 3/8 inch-18 thread; threaded stem 3/4 inches long.
Dimensions :LCA Series 2” high, 1-1/8” wide, 1-3/4” deep (1-1/16” deep including threaded stem).
Specifically designed for use inside compatible light fixtures or in weatherproof enclosures 2” in diameter or larger.
LCA Specifications Low voltage photo controls
Housing: Durable, high impact Lexan® housing, ultrasonically welded for maximum strength.
Nylon locknut provided. Compact in size, LCA series can be mounted directly within a lighting fixture or in lighting standards that are 2 inches in diameter or larger.
Photocell: Sealed Silicon Sensor
Turn-on: 1 to 3 foot-candles.
Turn-on/ off Ratio: 1:1.5
Time Delay: 1-5 seconds.
Switch Type: Single-pole, single-throw. Contact position at night normally closed.
Temperature Range: -30° to 175°F
Lead Wire: Color coded lead wire. Wire length: 15 inches.
Threaded Stem: 3/8 inch-18 thread; threaded stem 3/4 inches long.
Dimensions :LCA Series 2” high, 1-1/8” wide, 1-3/4” deep (1-1/16” deep including threaded stem).
