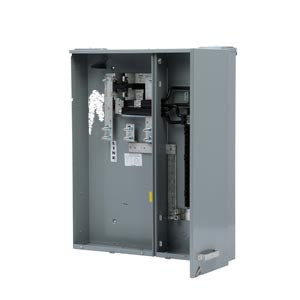

Siemens MC3042B1400SC Meter-Load Center Combination, 30 Space, 42 Circuit, 400-Amp, Surface Mount
Products | Siemens - Circuit Meter Load Center |SKU: MC3042B1400SC
*while supplies last*
Call for shipping rates for 3 orders and up.
This setup comes with a factory-installed main breaker and offers 30 spaces inside for circuits. You can connect a maximum of 42 circuits, making it highly versatile for your electrical needs.
Designed for a 1-phase system with a 4-jaw meter, this combination is rated at 400A. This means it can handle a substantial amount of electrical load, ensuring reliable performance.
Notable features include an overhead/underground feed option and a ring-type cover. This provides flexibility in how you connect your power source.
General technical
cable entry type: OH/UG
fastening method: Surface
number of openings: 30
Electricity
ampacity: 400 A
supply voltage frequency rated value 50/60 Hz: No
Mechanical Design
design of the terminal strip: Tin-plated aluminum extrusions 6061-T6
General product approval
certificate of suitability: EUSERC/UL67
Includes: 200A factory-installed main breaker
Provision for a 200A (max) field-installed additional main disconnect (Optional)
Accessories available here
QN2200RH - 2 Pole Circuit Breaker
EC56854 - 2" Conduit Type HD Hub Conversion Kit
EC56855 - 2 1/2" Conduit Type HD Hub Conversion Kit
EC56856 - 3" Conduit Type HD Hub Conversion Kit
EC56858 - 4" Conduit Type HD Hub Conversion Kit
