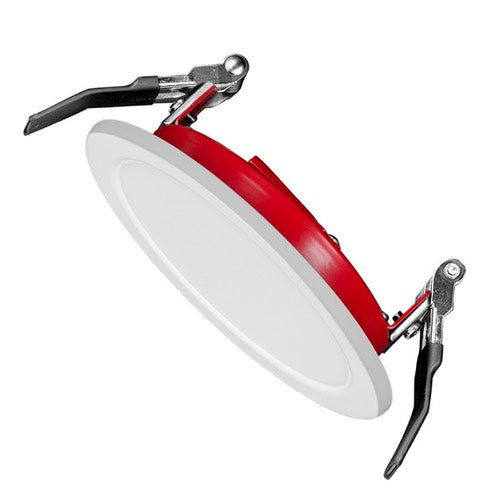

The LEDVANCE Performance Class Selectable Slim Microdisk is a slim profile LED downlight kit with remote driver that operates at 120V AC. The 1/2" height allows for installation directly under joists in new and remodel construction. This product family is rated for fire-proof applications, capable of withstanding flames of 1100°C for up to 2 hours, making it ideal for multi-family housing and shipbuilding applications.
| Product Information |
| Diameter (in) |
4.92 in |
| Diameter (mm) |
125.00 mm |
| Power Factor |
≥0.90 |
| Total Harmonic Distortion (THD) |
< 20 % |
| Efficacy (LPW) |
80 lm/W |
| Operating Voltage (V) |
120 |
| Power (W) |
120 |
| Abbrev. With Packaging Info. |
LEDMD4R3B800ST9SC3WH 6/CS 1/SKU |
| Color Temperature/CCT (K) |
2700 |
| Ordering Abbreviation |
LEDMD4R3B800ST9SC3WH |
| Average Rated Life 1 (hr) |
50000 |
| UPC Code |
UPC046135634260 |
| Color Rendering Index (CRI) |
90 |
| Service Life Rating |
50000 |
| Lumens (lm) |
800 lm |
| Wattage (W) |
10.00 W |
| Color Range |
2700 K |
| Connectors |
not relevant |
| Fixture Warranty |
5 years |
| Housing |
Plastic |
| Luminaire Finish |
White |
| Luminaire Type |
Downlight |
| Mounting |
Recessed |
| Certification Listing |
RoHS,FCC,cULus |
| Height (in) |
0.9 in |
| Height (mm) |
22.86 mm |
| Width (in) |
4.92 in |
| Width (mm) |
125.00 mm |
| Product Weight (g) |
264.00 |
