EMCOD EGP300P12AC - 300W 12/24V AC - Indoor/Outdoor Dimmable Magnetic Power Supply - Powder Coated Black Steel
EMCOD EGP Indoor/Outdoor Dimmable Magnetic Power Supplies | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |SKU: EGP300P12AC
 |
Conforms to UL STD. 2108 |
| Certified to CSA STD. C22.2 № 250.0, |
|
Magnetic Outdoor

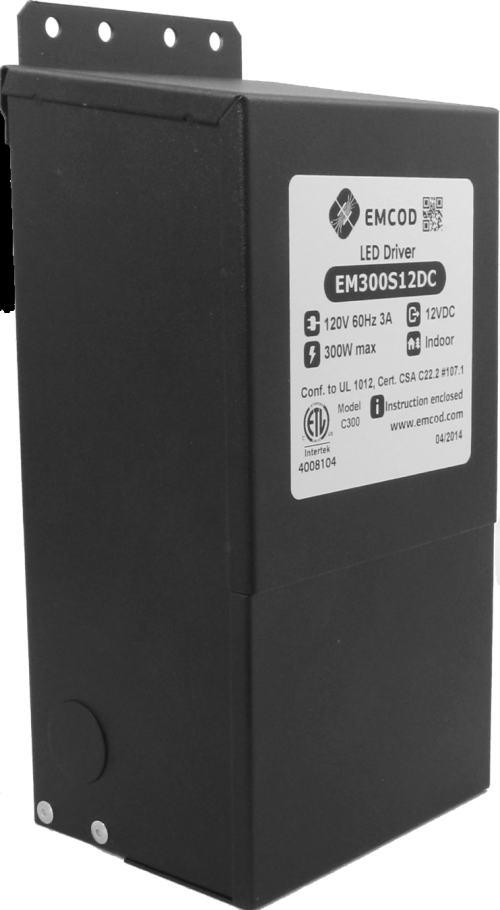

Black Powder Coated Steel Enclosure
Black Powder Coated Steel Enclosure
Transformer
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 5A
25A per circuit
Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8, W = 4.1, D = 3.1
Weight (LBs): 0.9
Electrical Parameters
| Input Voltage: | 120V 60Hz | |
| Max. input current: | 2.8A at full load | |
| Output voltage without load: | 12.4/ 24.8VAC | |
| Output voltage fully loaded: | 11.8/ 23.8VAC | |
| Max. Total Wattage: | 300W | Max. per circuit:150W |
| Max. Output Current: | 25/ 12.5A per circuit. | |
| Efficiency: | 93% | |
