Panasonic FV-0510VSL1 WhisperValue DC Fan / Light, Pick-A-Flow, 50-80-100 CFM - Ready Wholesale Electric Supply and Lighting

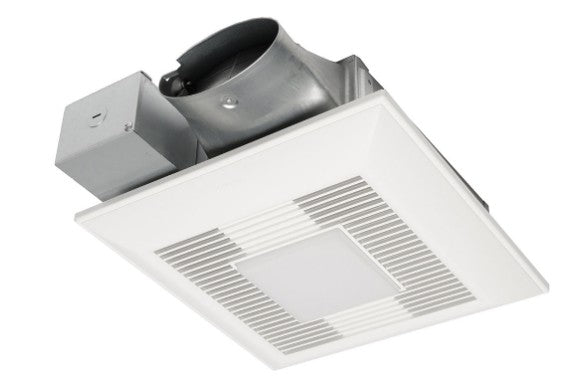

Panasonic FV-0510VSL1 WhisperValue DC Fan / Light, Pick-A-Flow, 50-80-100 CFM

Panasonic Whispergreen Fans - Ventilation Fans | Products |
SKU: Panasonic-FV-0510VSL1

  • $165.99
    Unit price per
  • Save $77.01

Panasonic Fan/LED light with ECM Motor and Pick‐A‐Flow 50, 80 or 100 CFM, ceiling or wall mount, 3‐3/8" housing depth (LED chip panel incorporates night light).

PRODUCT DETAILS

WhisperValue® DC™ Fan/LED Light is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single, Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow™ airflow selector switch to customize airflow (50, 80 or 100 CFM).

KEY FEATURES
  • Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
  • Pick-A-Flow™ Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM)
  • Incorporates one 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination (night light must be wired separately)
  • Low profile 3-3/8” depth fits virtually anywhere, including 2x4 construction


Product Specifications

Specification Description
Air Volume Exhaust (CFM) 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP
Master Carton Dimensions (HxWxD) 9.06 x 14.17 x 16.93
CFM 50-70. 80-110
Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
Color Rendering Index 90
Color Temperature (Kelvin) 3,000
Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
Current (Amps) 50 CFM= .08A, 80 CFM= .13A, 100 CFM=.18A
Ventilation Design Approach Continuous Ventilation. Spot Ventilation
Duct Diameter 4" Oval
Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W
ENERGY STAR® Certified Yes
Fan Type Fan Only
Grille Size (in sq.) 13"
Industry Residential. Light Commercial
Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
Lamp Watts 10
Lumens (lm) 700
Lumens Per Watt (LPW) 70
Motor Type (AC/DC) ECM
Mounting Opening (in sq.) 10-1/2"
Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
Night Light 0.2
Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W
Power Rating (V/Hz) 120/60
Product Family Name WhisperValue DC
Radiation Damper Available Yes
Rated Life (hours) 50,000
Type of Lamp Socket LED chip
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
Warranty 6 year DC Motor, 3 Year Parts
Master Carton Gross Weight (lbs.) 9.92



Downloads



WhisperValue® DC™ Fan/LED Light FV-0510VSL1 50-80-100 CFM, Lowest Profile, Ceiling or Wall Mount Fan

WhisperValue® DC™ FV-0510VSL1 Fan/LED Light is the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2x4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.

ECM Motor - The Best Performing, Most Energy Efficient Motor Available

The revolutionary ECM motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.

Smart Flow ECM Technology

Pick-A-Flow™ Airflow Technology – One Fan, You Choose The CFM

Built-in Pick-A-Flow™ airflow selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.

3-3/8 in. Housing Depth is the Slimmest Design Available

The extremely thin profile WhisperValue DC fan opens up options for where you can install the fan, which is UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.

LED Lamps Provide Warm, Energy Efficient Illumination

WhisperValue® DC™ fan/light models feature a contemporary flush mount grille that incorporates one 10W Dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/50,000 hours rated average life.



Long Life Means Reduced Costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation Flexibility with a Simpler Bracket and Optional Duct Adapter

Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R), sold separately.

ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.

Energy Star Certified Most Efficient 2020
