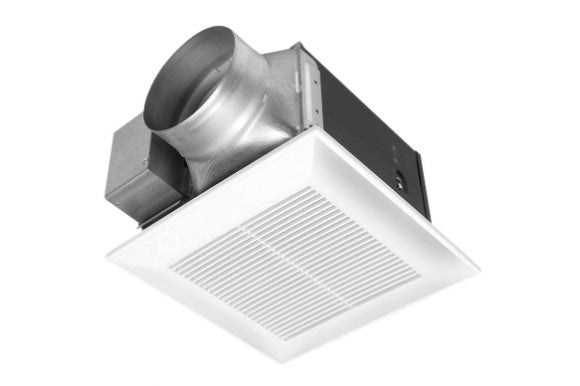

Panasonic FV-20VQ3 WhisperCeiling Spot Ventilation Fan, 190 CFM

Panasonic Whispergreen Fans - Ventilation Fans | Products |
SKU: Panasonic-FV-20VQ3

  • $213.99
    Unit price per
  • Save $143.01

Panasonic High Volume Fan, 190 CFM
PRODUCT DETAILS

WhisperCeiling 190 CFM large volume ceiling mount fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.

KEY FEATURES
  • Large volume (190) CFM options designed for light commercial applications
  • UL listed for tub/shower enclosure when GFCI protected
  • Can be used to comply with ASHRAE 62.2, LEED, IAP, EarthCraft, California Title 24 and WA Ventilation Code

    PRODUCT SPECIFICATIONS

    Advanced Features Single Speed
    Air Volume Exhaust (CFM) 190 @ 0.1" SP, 145 @ 0.25" SP
    Master Carton Dimensions (HxWxD) 19-7/16" x 15-1/2" x 12-1/8"
    CFM Greater than 150
    Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
    Construction Type single Family/ Manufactured Housing/. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling
    Current (Amps) 0.34A
    Ventilation Design Approach Continuous Ventilation. Spot Ventilation
    Duct Diameter 6"
    Energy Efficiency (CFM/Watt) 4.6 CFM/W
    ENERGY STAR® Certified Yes
    Fan Type Fan Only
    Grille Size (in sq.) 15
    Industry Residential. Light Commercial
    Installation Ceiling
    Motor Type (AC/DC) AC
    Mounting Opening (in sq.) 12-3/16"
    Mounting Options Ceiling Mount. Tub Shower (UL)
    Noise (Sones) 190 @ 0.1" SP = 0.8, 145 @ 0.25" SP = 1.4
    Power Consumption (Watts) 43.7W
    Power Rating (V/Hz) 120/60
    Product Family Name WhisperCeiling
    Radiation Damper Available No
    UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
    Warranty 3 Year Parts,
    Master Carton Gross Weight (lbs.) 16.8


    Resources


    WhisperCeiling FV-20VQ3 190 CFM, Ceiling Mount Fan

    WhisperCeiling™ large volume exhaust fans are ideal for light commercial applications. The workhorse of the Panasonic line, they are time-tested and customer approved for their quiet, yet powerful consistency. Rated for continuous use, WhisperCeiling vent fans are a simple way to incorporate an energy efficient ventilation strategy.

    We Set the Standard for Quiet Operation

    WhisperCeiling fans feature a totally enclosed condenser AC motor and a double-tapered blower wheel to quietly move air-even at twice the static pressure as the industry standard. WhisperCeiling exceeds the performance measurement for ASHRAE 62.2, ENERGY STAR® 3.0, and LEED for Homes.

    Long Life Means Reduced Costs

    When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

    Installation Flexibility

    WhisperCeiling large volume fans feature a 6 in. duct adapter and fit in 2x8 construction. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.

    ENERGY STAR® certified for energy savings

    ENERGY STAR® certified vent fans meet strict parameters set by the US Environmental Protection Agency. Panasonic ventilation fans are ENERGY STAR® certified where guidelines exist, and provide greater efficiency and comfort with less noise. High performing motors and improved blade design deliver superior performance and long life you expect from a premium Panasonic ventilation fan.


    If you don't see the exact model number or color you are looking for, call our Internet Sales Department at 1-818-477-4017. We can get anything for you!
