EMCOD ECV50-24DC - 50W 24V DC - Dimmable Electronic Constant Voltage LED Driver
EMCOD ECV - Constant Voltage Series | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |SKU: ECV50-24DC
 4010300
|
Conforms to UL STD. 1310 |
| Certified to CSA STD. C22.2 № 223 |
|
Class 2 Electronic Triac Dimmable
Plastic Suitable For Dry And Damp Location Enclosure
Plastic Suitable For Dry And Damp Location Enclosure
Transformer
PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads: Terminal Block
Output leads: Terminal Block

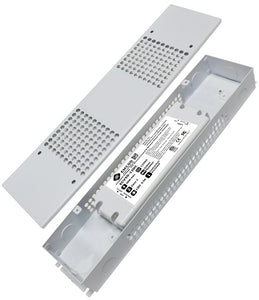

Housing
The actual transformer 50W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire
compartment, IP 20 rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 13.5, W = 3.03, D = 1.45
Weight (LBs): 1.6
Electrical Parameters
| Input Voltage: | 120V 50/60Hz |
| Max. input current: | 0.9A at full load |
| Output voltage without load: | 24.2VDC |
| Output voltage fully loaded: | 24VDC |
| Max. Total Wattage: | 50W |
| Max. Output Current: | 2.1A |
| Efficiency: | 81% |
| Load regulation: | 5% |
| Ripple: | 10% |
Class 2 junction box is optional
