EMCOD ECV60-12DC - 60W 12V DC - Dimmable Electronic Constant Voltage LED Driver
EMCOD ECV - Constant Voltage Series | EMCOD Lighting - LED drivers, Lighting and Transformers | Products |SKU: ECV60-12DC
 4010300
|
Conforms to UL STD. 1310 |
| Certified to CSA STD. C22.2 № 223 |
|
Class 2 Electronic Triac Dimmable
Plastic Suitable For Dry And Damp Location Enclosure
Plastic Suitable For Dry And Damp Location Enclosure
Transformer
Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C

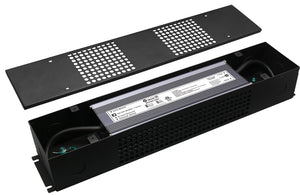

Housing
The actual transformer 60W is encapsulated in the enclosure
The enclosure is Aluminum with wire compartment, IP 67 rated
Wiring compartment has 4 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 13.15, W = 3.03, D = 2.24
Weight (LBs): 0.35
Electrical Parameters
| Input Voltage: | 120V 50/60Hz |
| Max. input current: | 0.76A at full load |
| Output voltage without load: | 12.1VDC |
| Output voltage fully loaded: | 12VDC |
| Max. Total Wattage: | 60W |
| Max. Output Current: | 5A |
| Efficiency: | 85% |
| Load regulation: | 1% |
| Ripple: | 5% |
